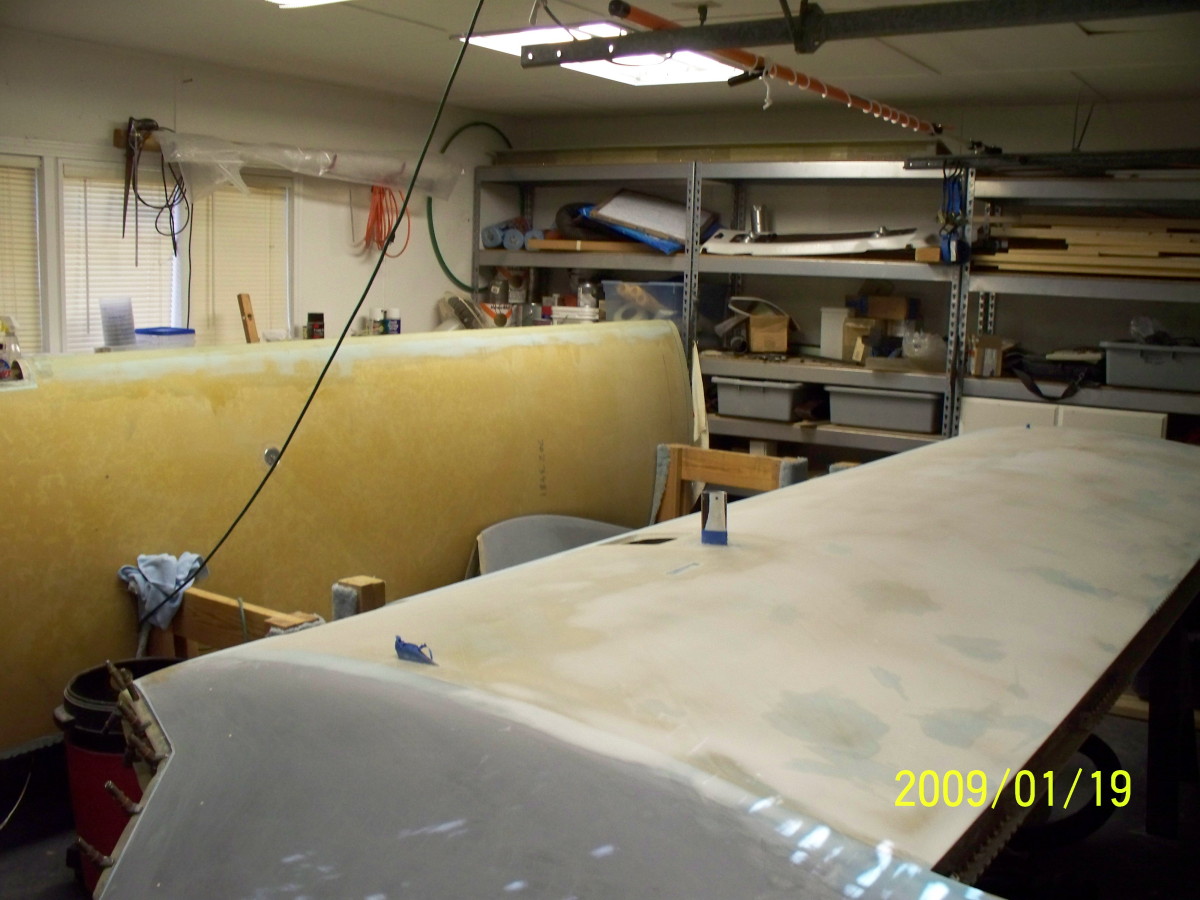

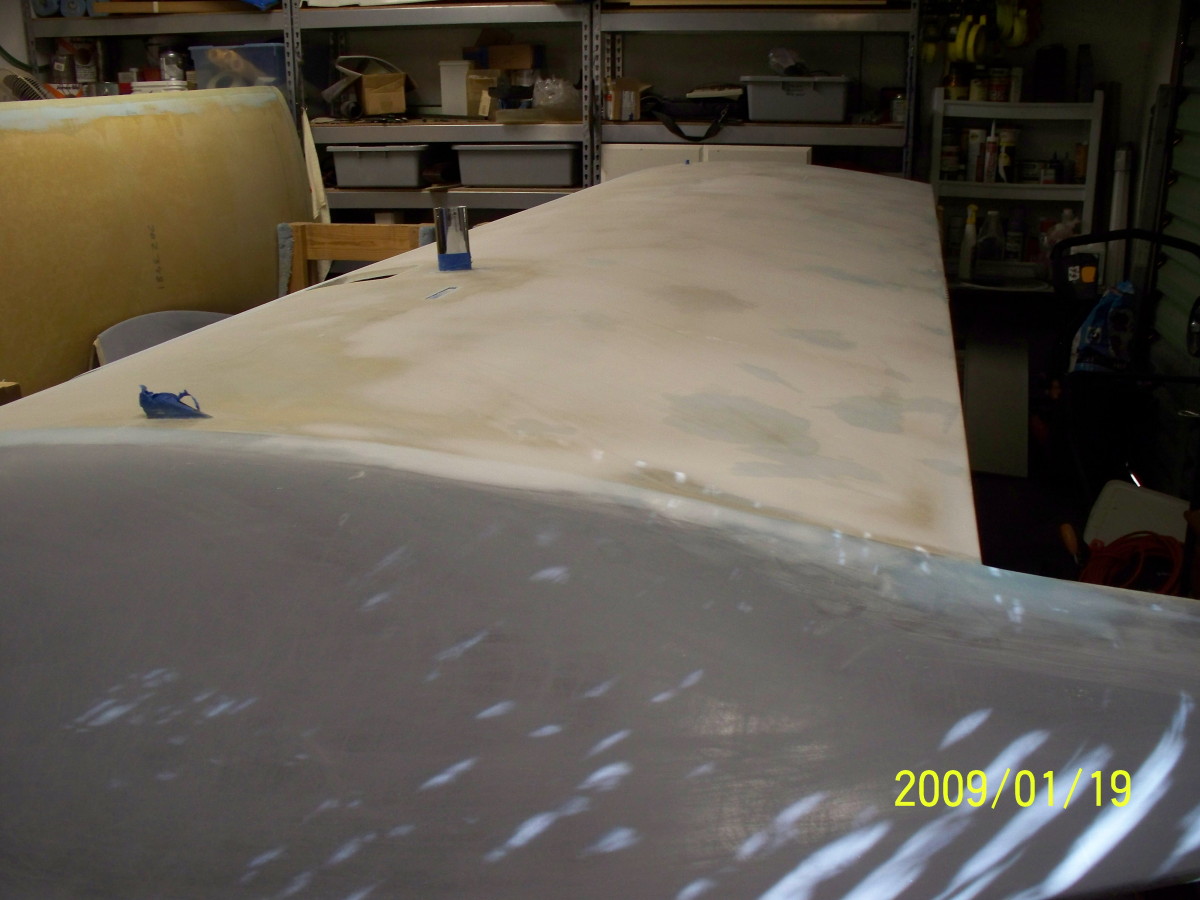

With the wingtip installed, I filled and sanded the wing removing
all low spots and seams around the wingtip.
The fill and sand process resulted in a very smooth surface but the
glass bead filler and resulting wing still had a large number of those pesky
pin holes.
In order to get a uniform pin hole free surface, I am using a final
surface of 1.5 oz. glass cloth. This cloth uses a very fine glass fiber
with a tight weave containing more threads per inch than the normal glass
fabric.

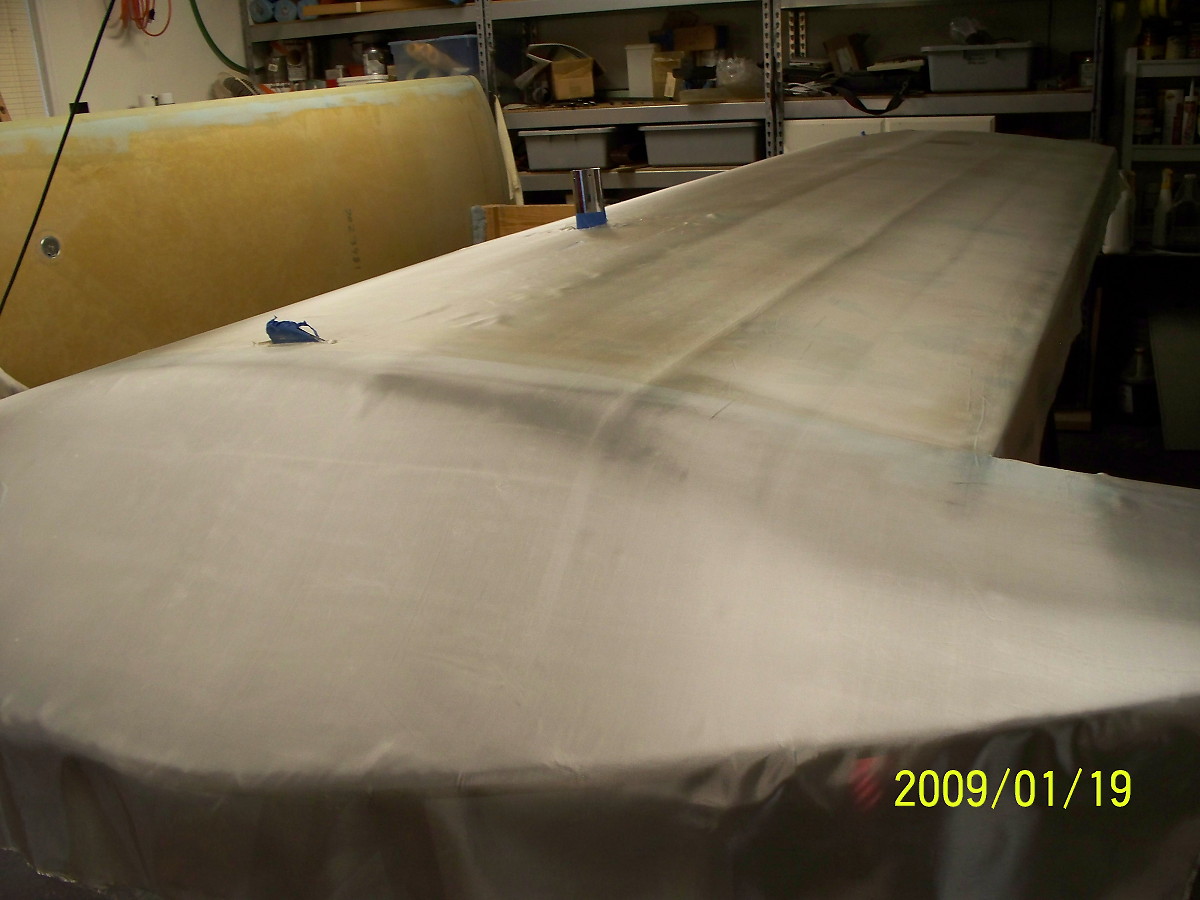

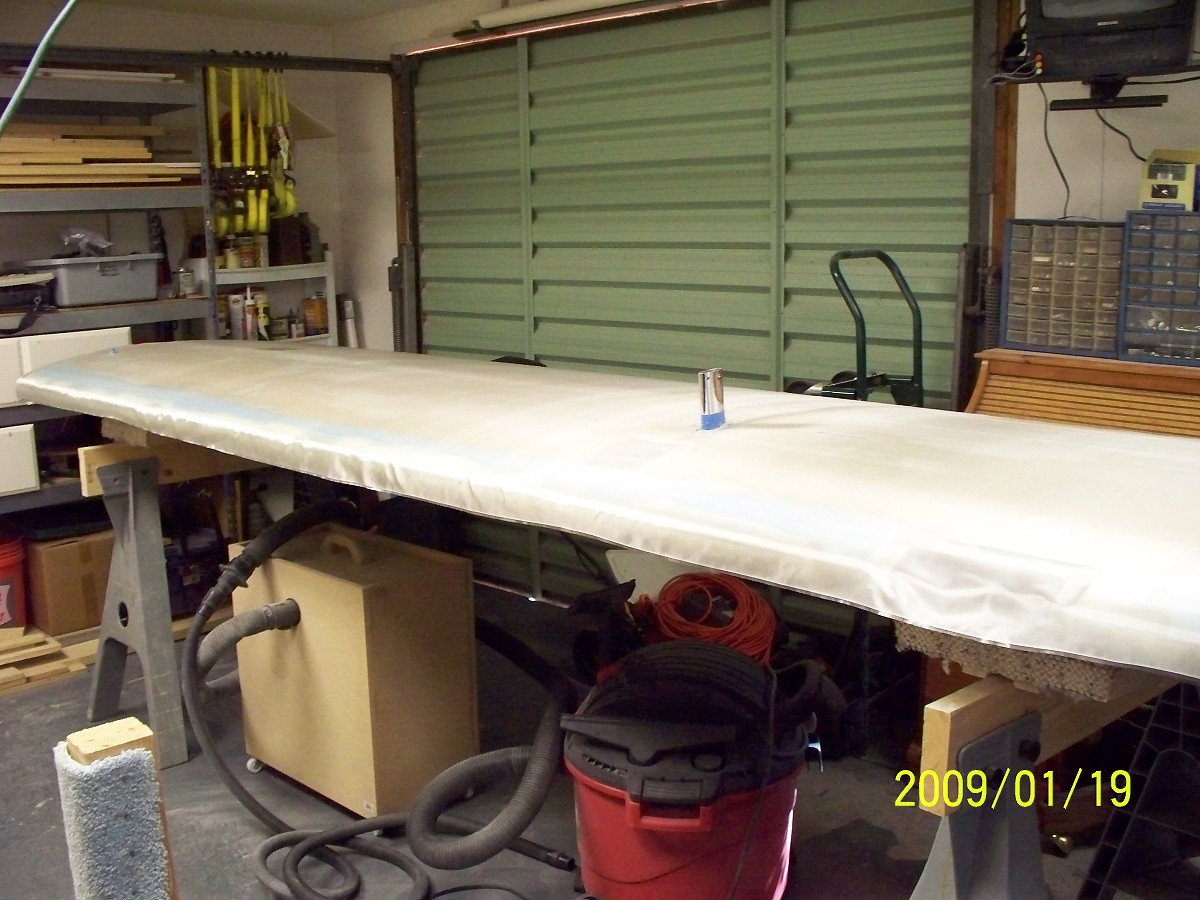

The entire wing, top and bottom is covered with the deck cloth and
epoxied. Following cure, a final sanding is performed to remove any
resulting epoxy buildup or imperfections and the resulting surface is clear
of pin holes and ready to start application of paint.
The first two coats of primer have been applied. I am using
System Three Yaght Primer and will follow-up with the System Three base color
coat and a final coating of System Three clear gloss. The UV Blocker
is built into the color coats.
The primer coats are applied with a roller and tipped off with a brush.
The result does show some slight brush marks but not much more than
than with spraying. It goes on real easy and is a high buildup primer.
Sanding is fairly easy and some test sanding did not show any bleed
through.
Note the fuel vent.

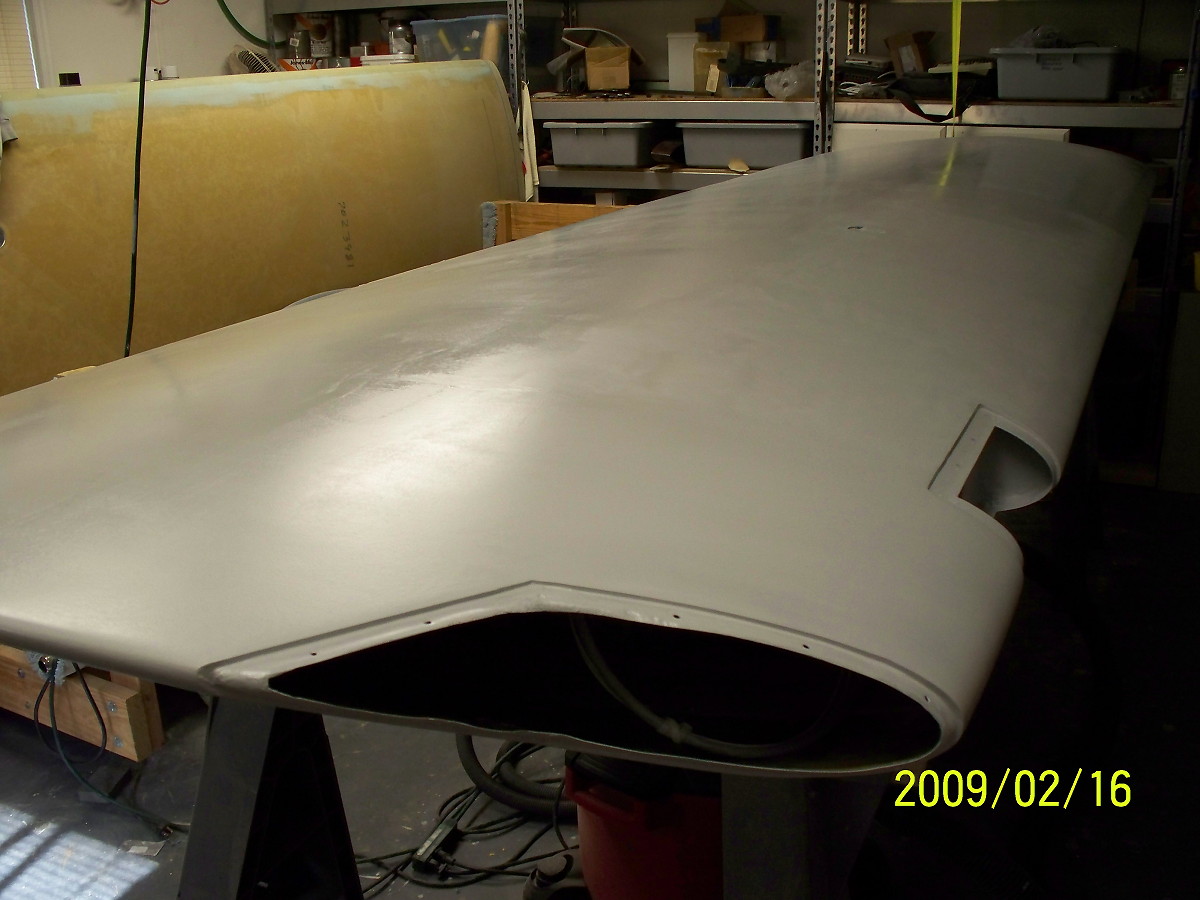

This shows the top of the wing following the initial primer coats
but before any sanding has been performed. You can see some of the
overlap of the roller and slight imperfections. I will sand this and
take another shot following the sanding for paint application.

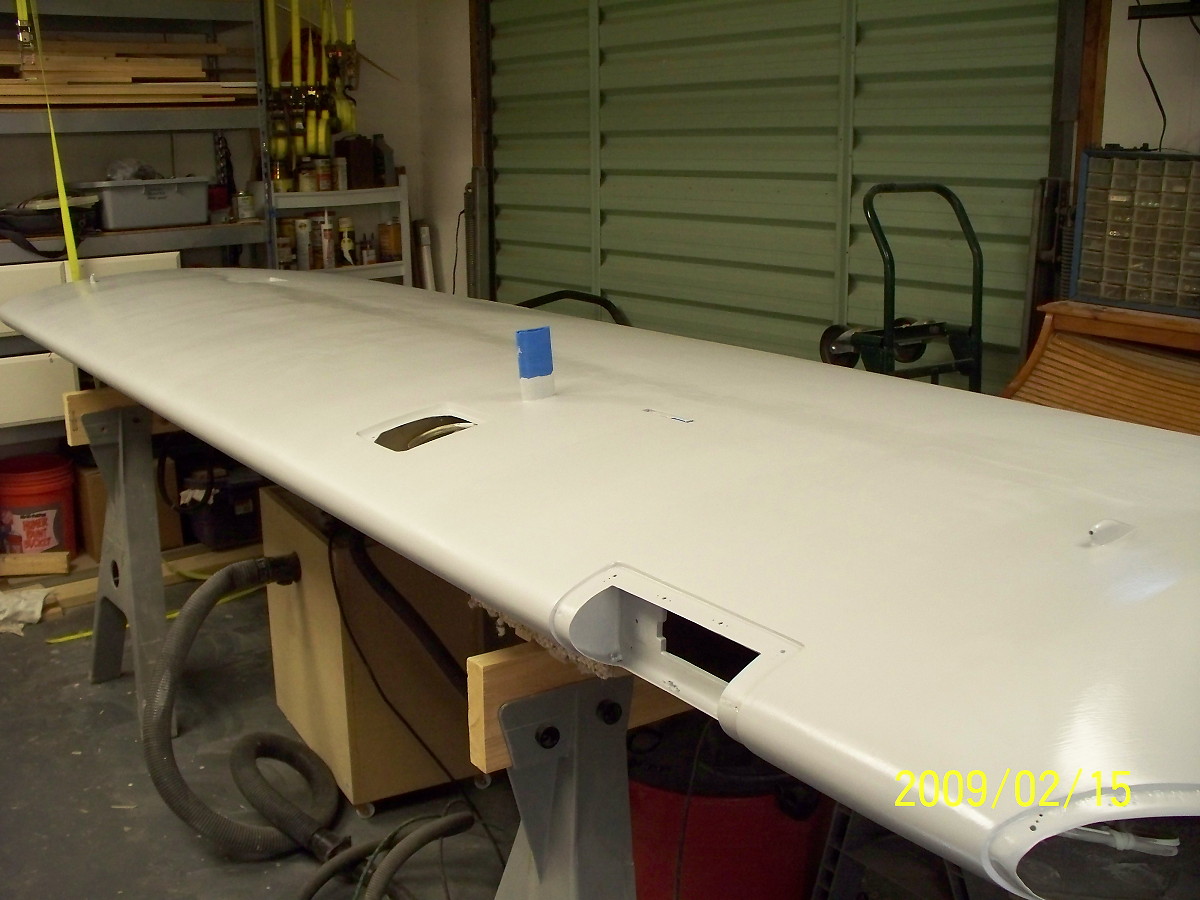

View of the same wing from the back. All the hinge screws have
been hidden and glassed over. The blue painters masking tape is covering
the hinges and the grounding strap.
