Engine Pressure Plenum

Sometime you plan everything in advance and sometimes things are best done by seeing what works best as you progress through a task.  That is the case with the construction of my engine pressure plenum.  I started with be baffle system purchased from Vans Aircraft for the Lycoming O-360 Engine.  The basic system was a great start and saved a lot of time in preparing the initial system.

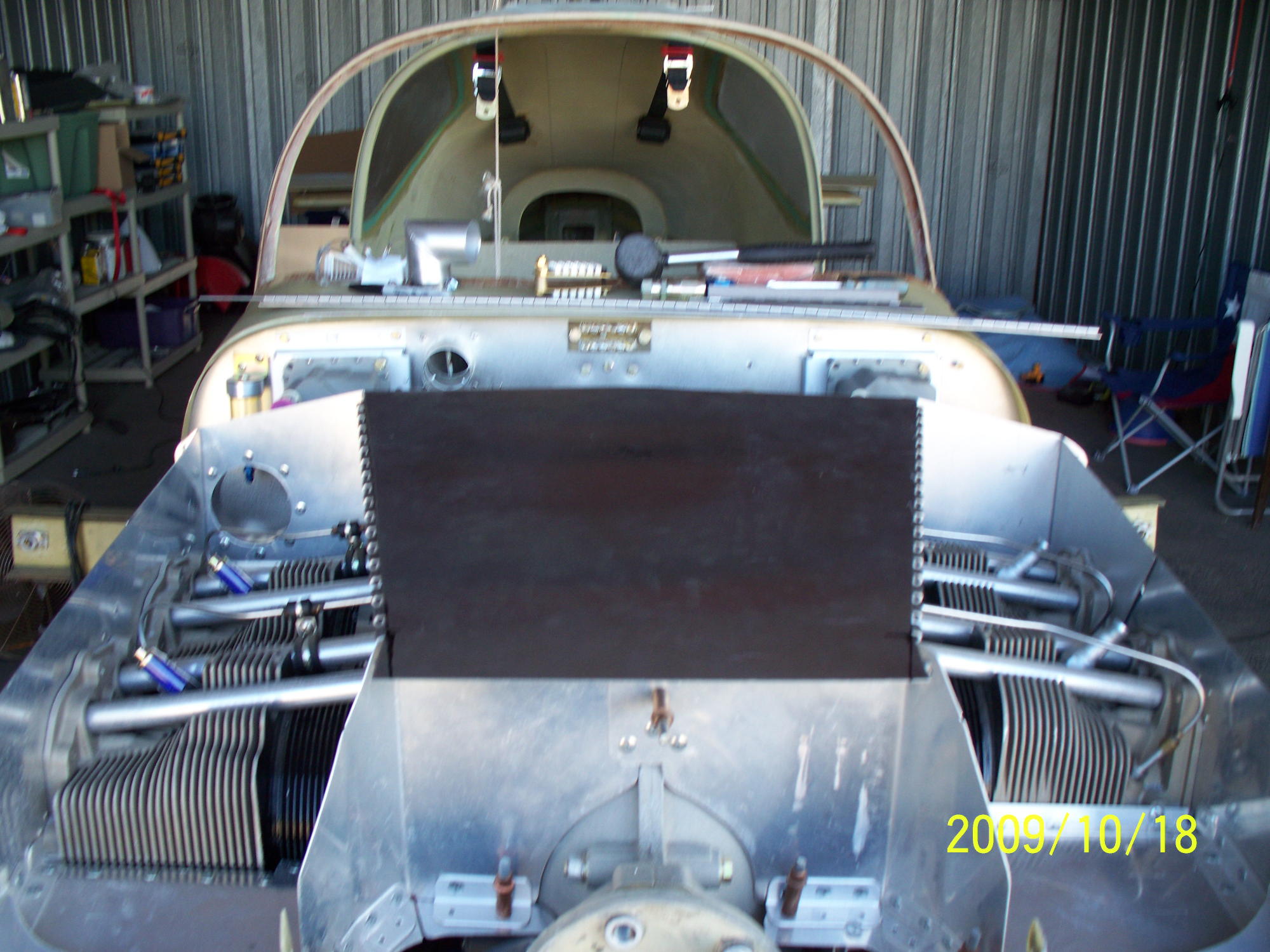

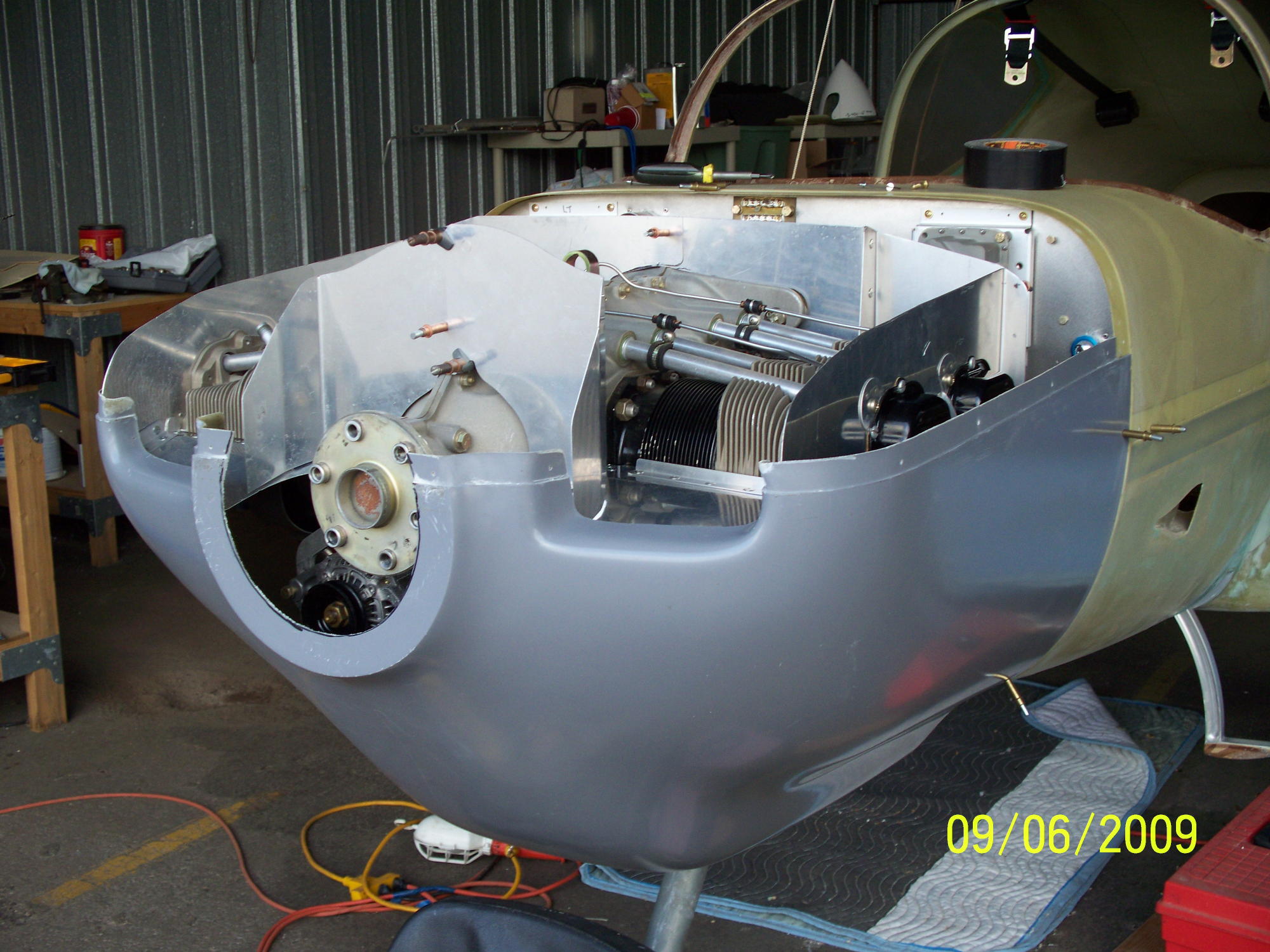

An initial fitting of the baffle shows a very good fit until you place the top of the cowling in place.
The back of the cowling is way too high to fit under the cowling, the sides are slightly too high and
the front clearly won't fit within the cowling top or bottom.

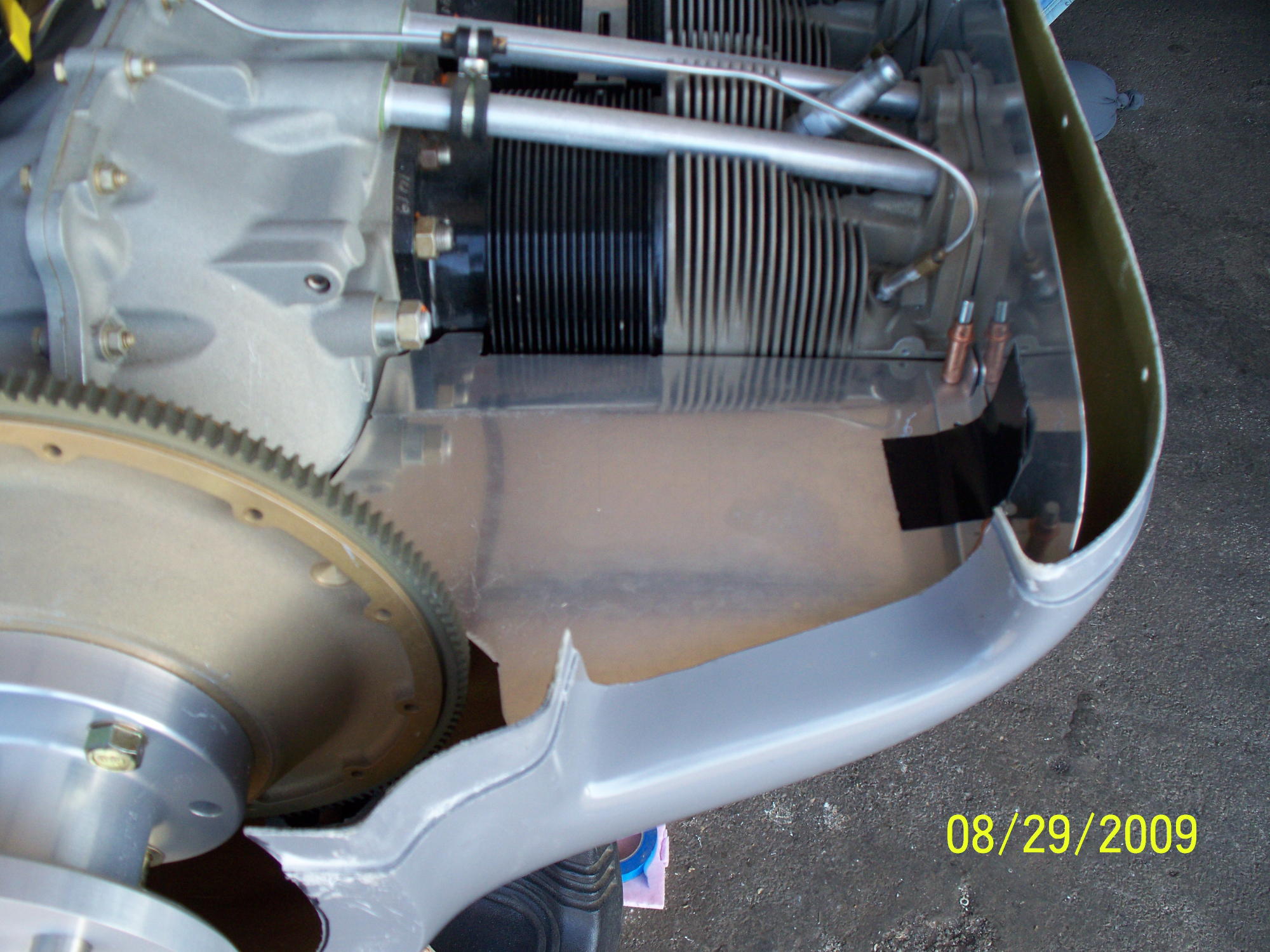

I started by trimming the front to fit intoand clearing the inside of the cowling.  I then trimmed the back to clear
the top of the cowling.  I cut the back to be level across the center 2/3 and then angled down to the lower sides.

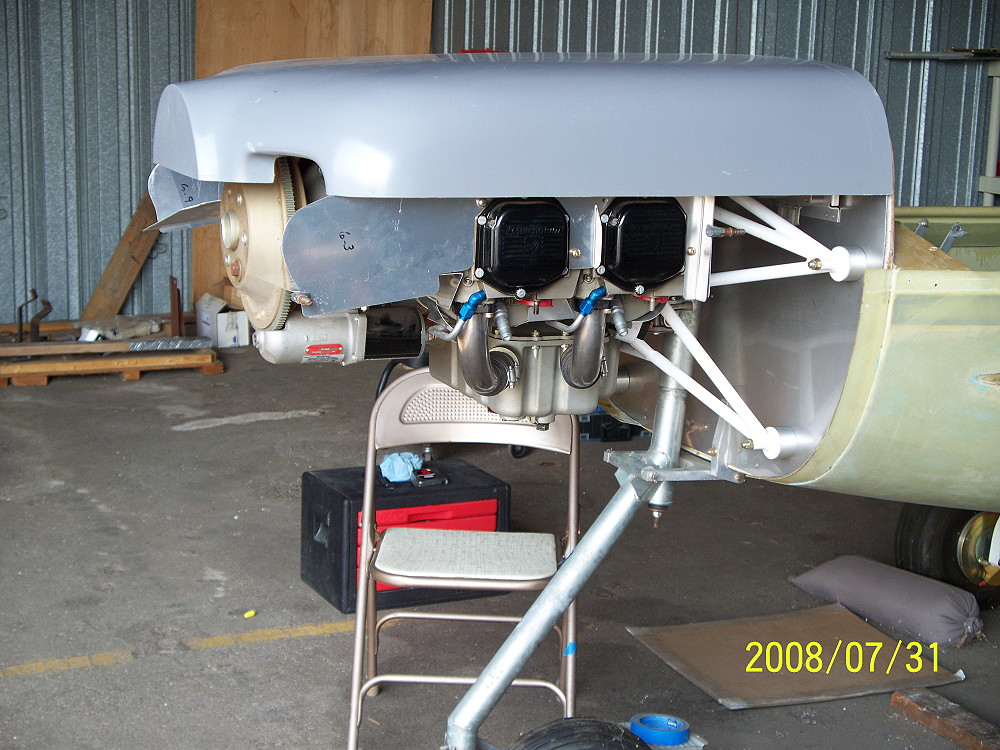

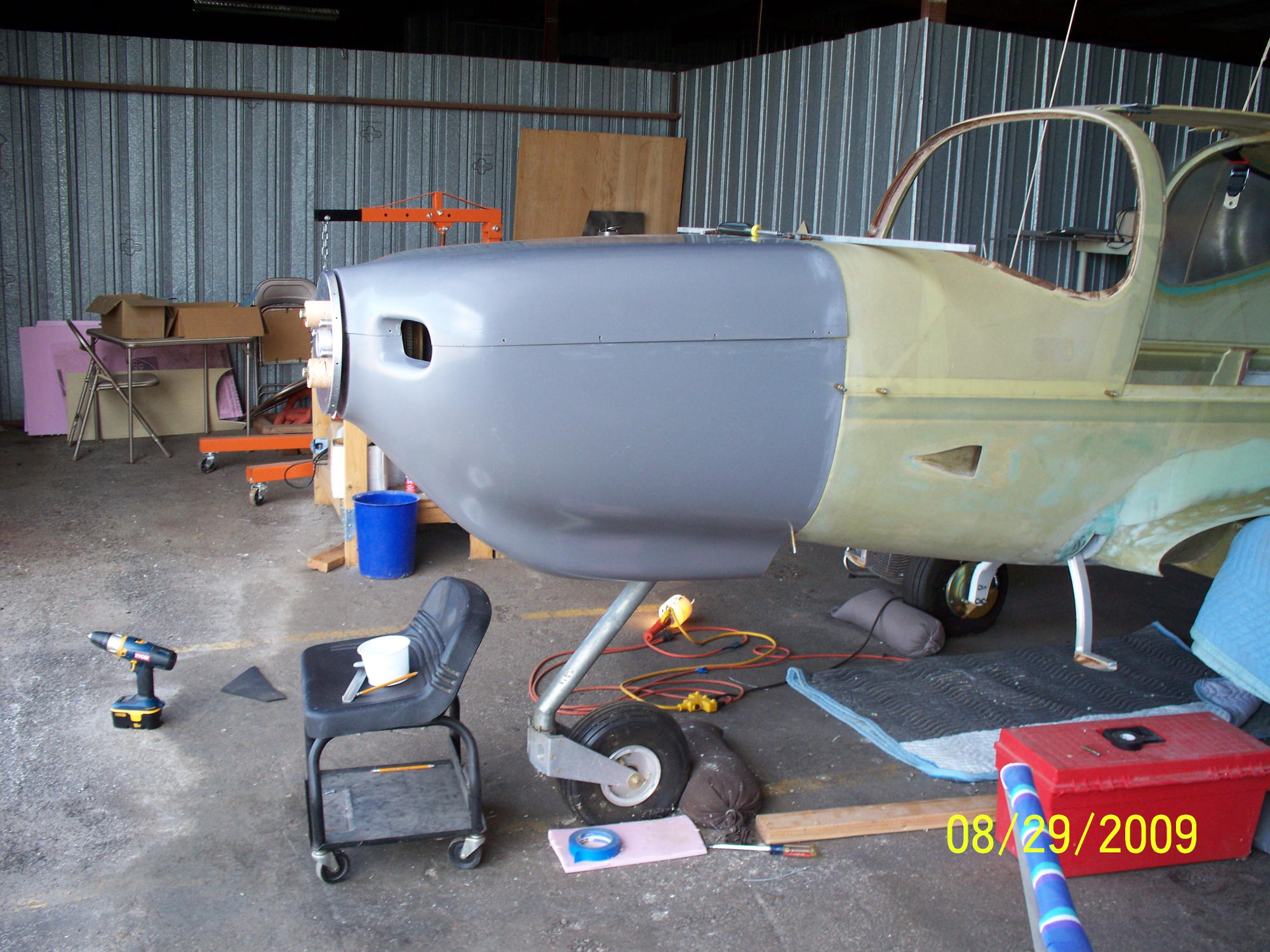

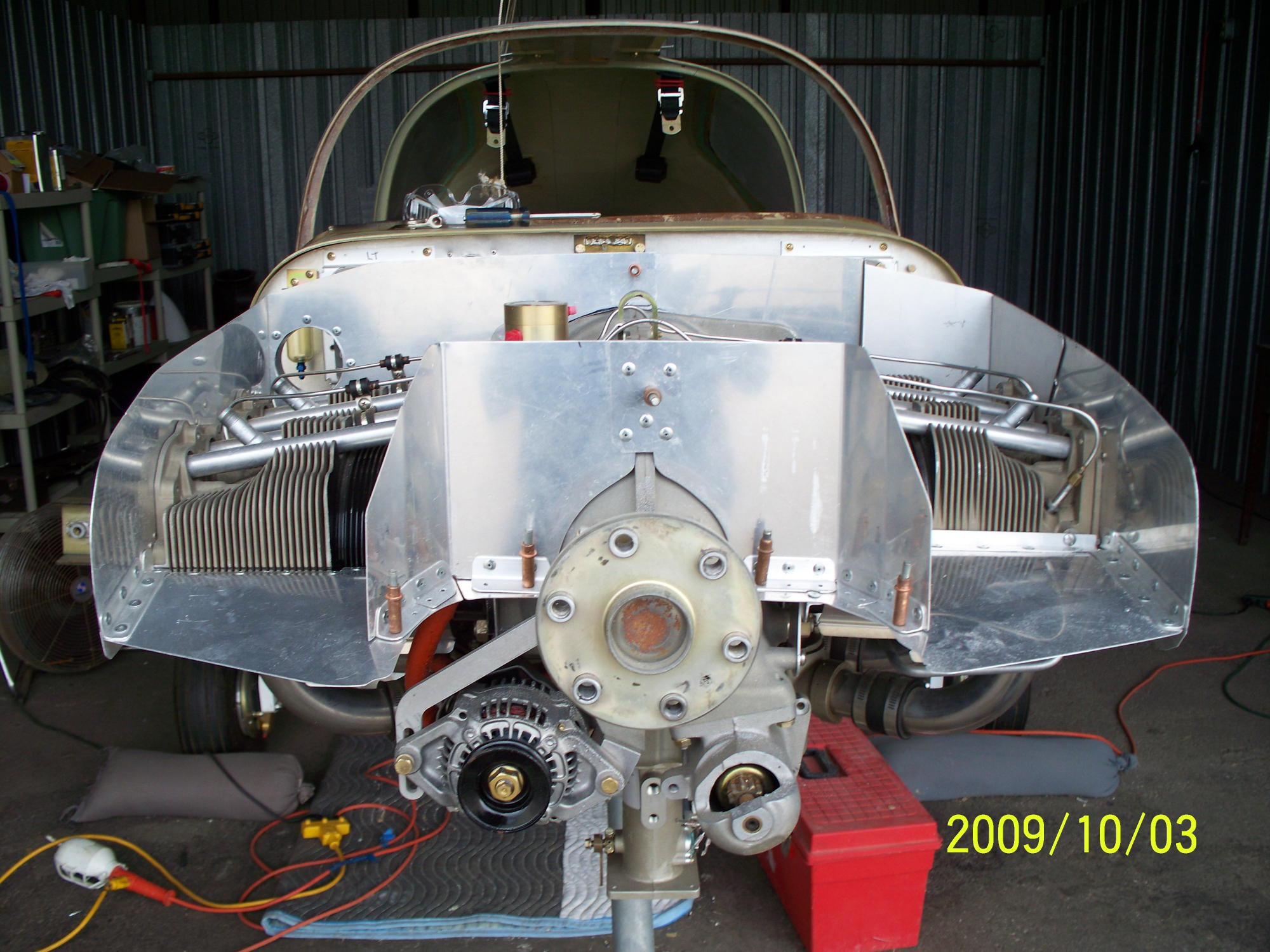

A trial fitting of the full cowling shows the basic fit is ok.  The next step is to start the lower front baffle fiting.

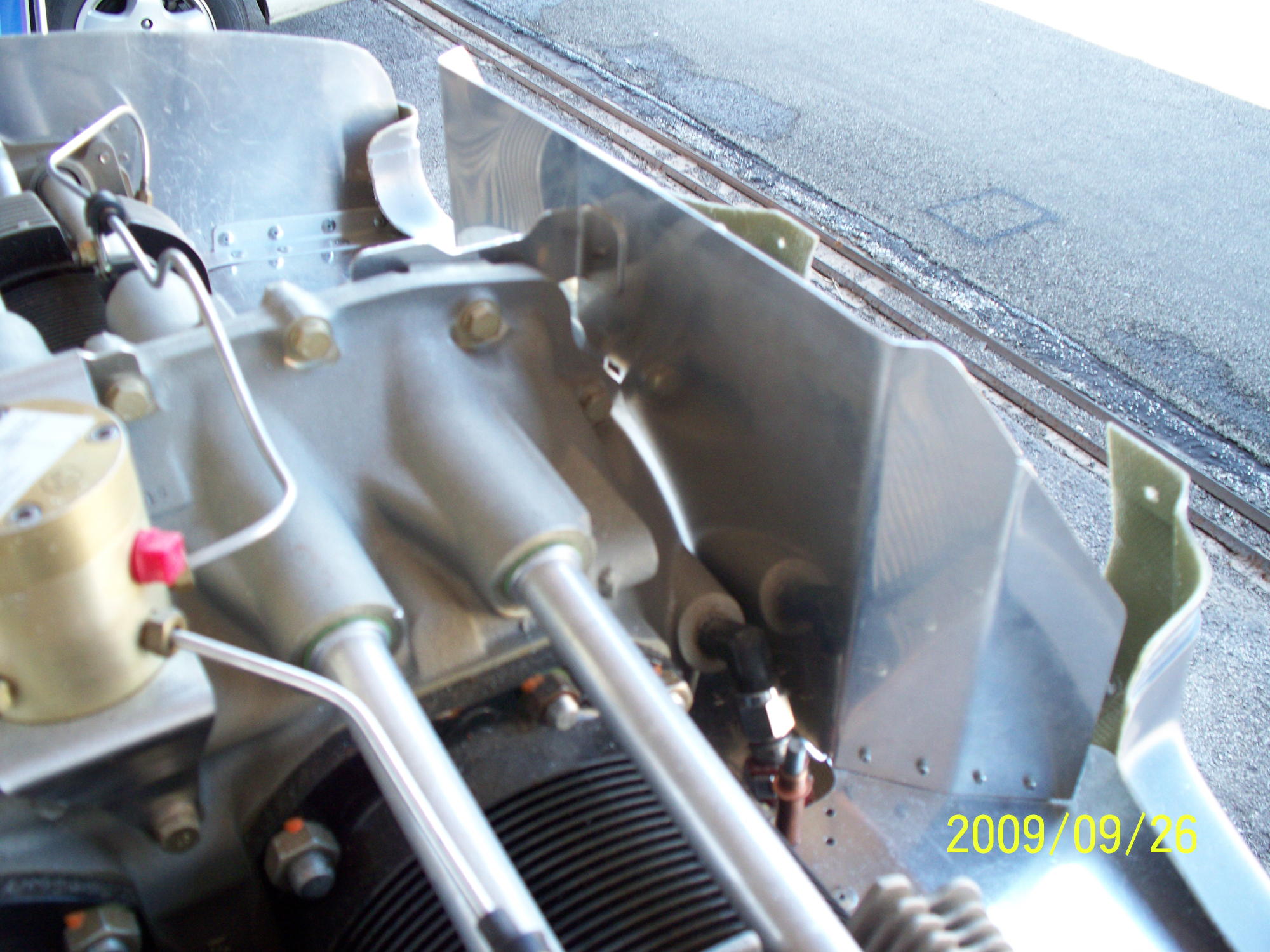

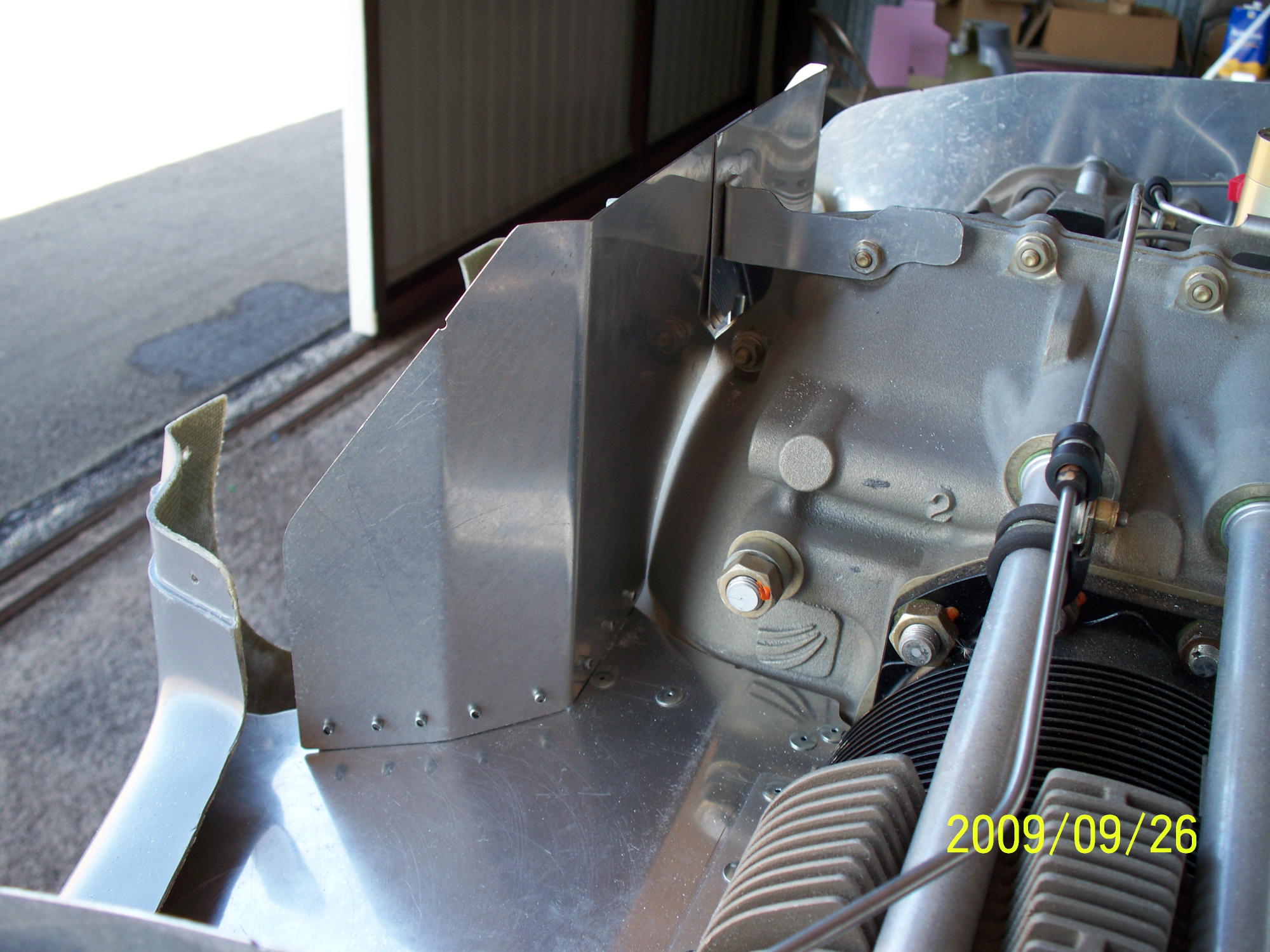

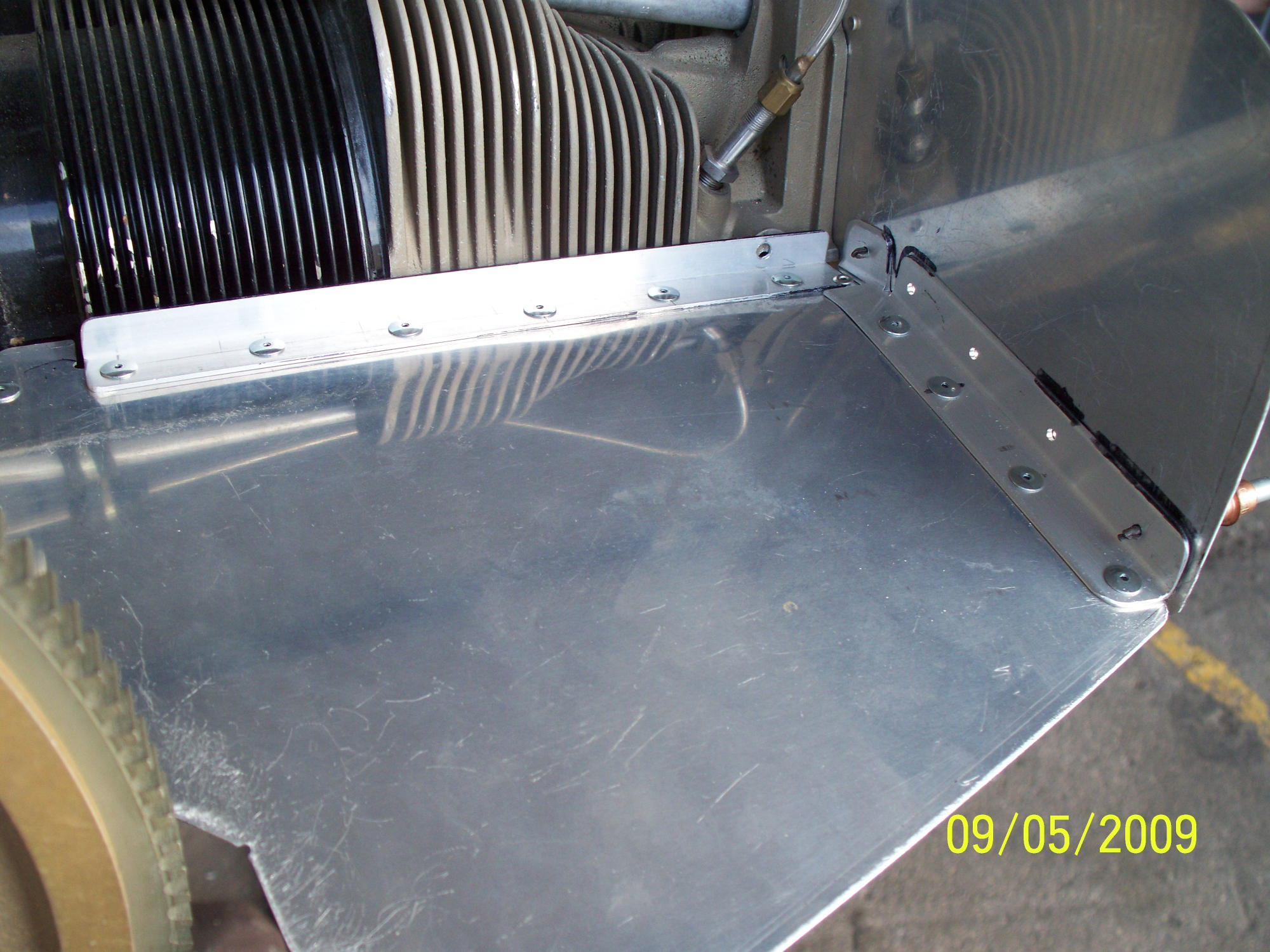

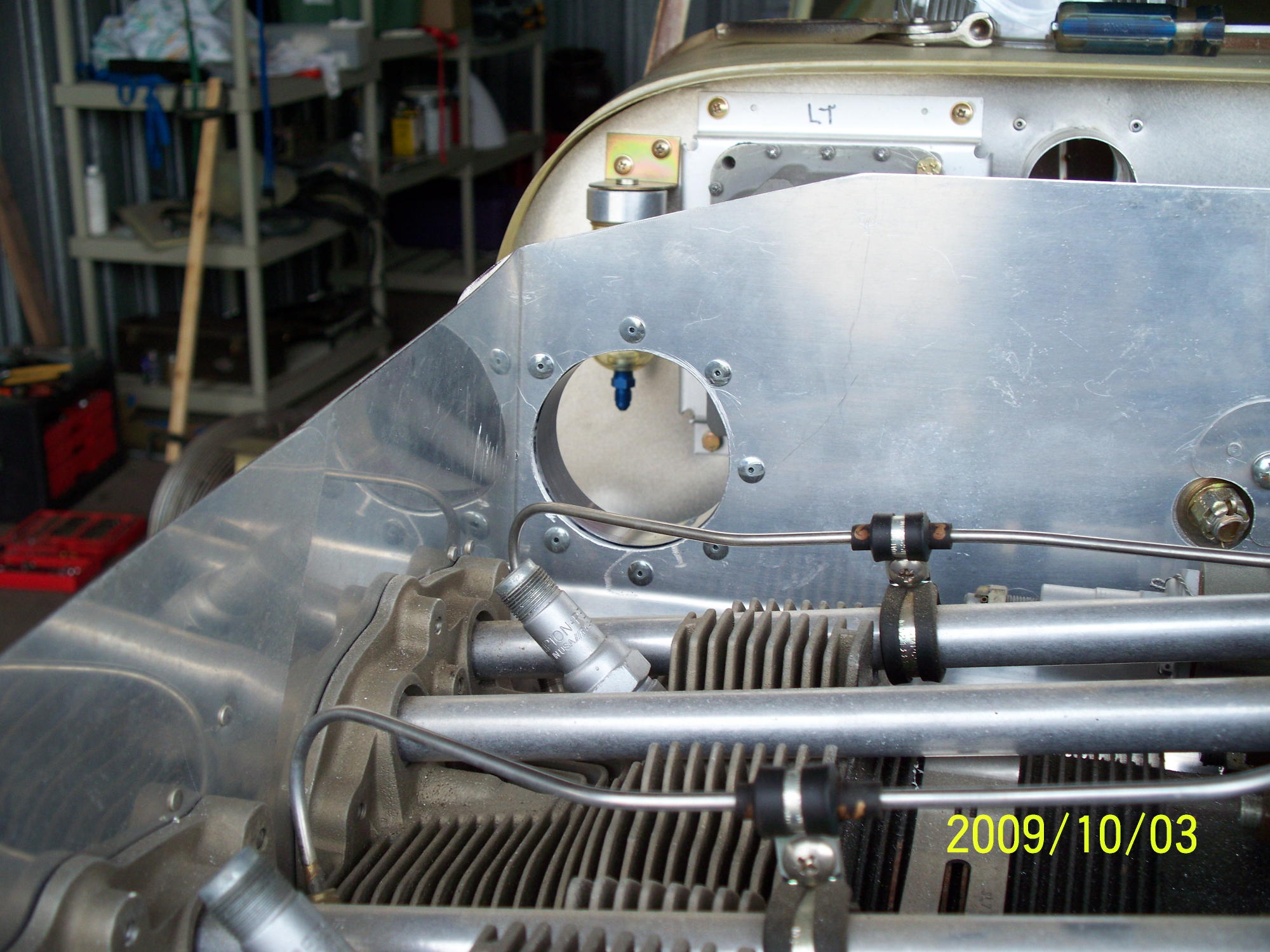

The sides come fully up beyond the inside of the cowling.

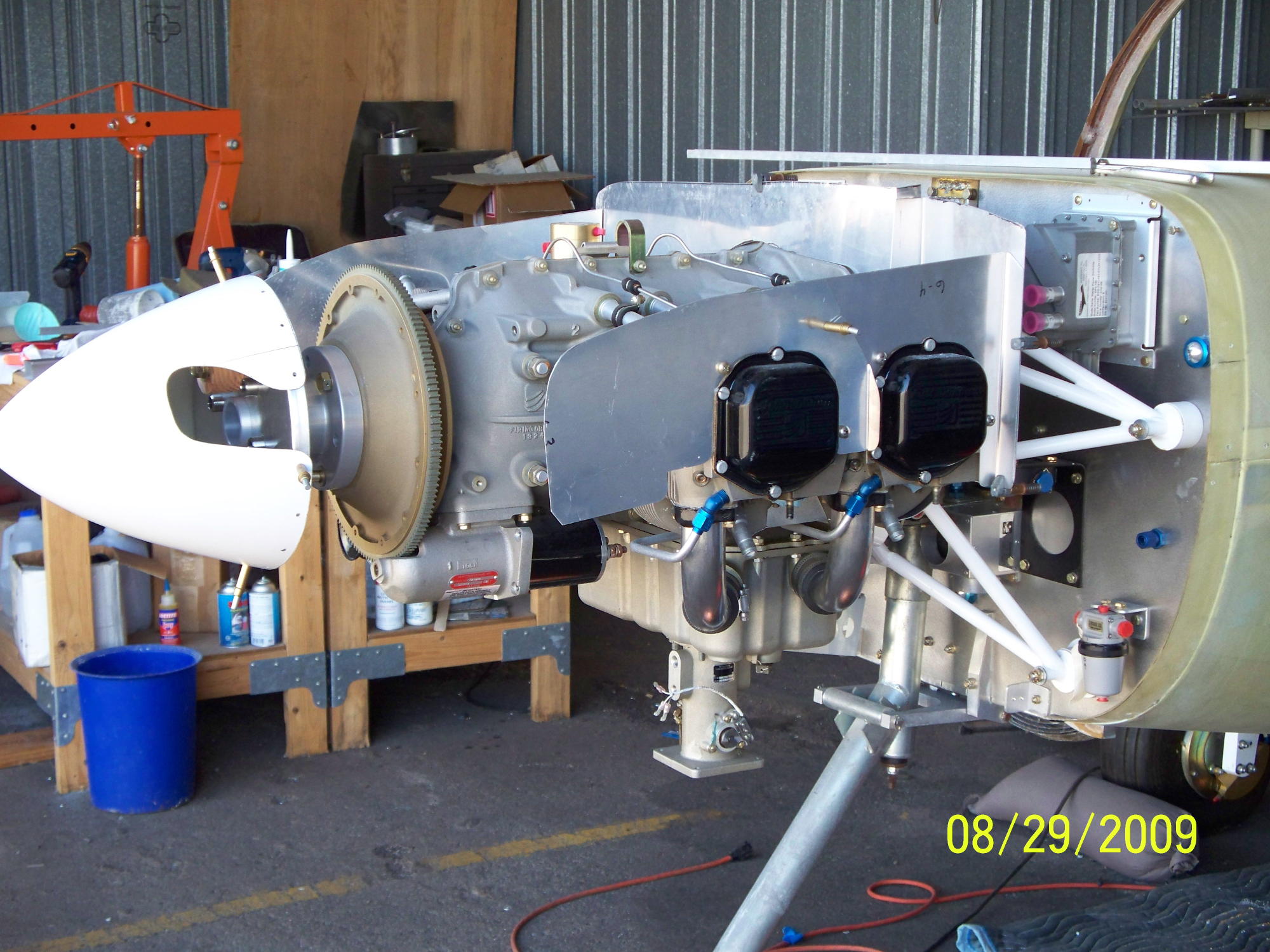

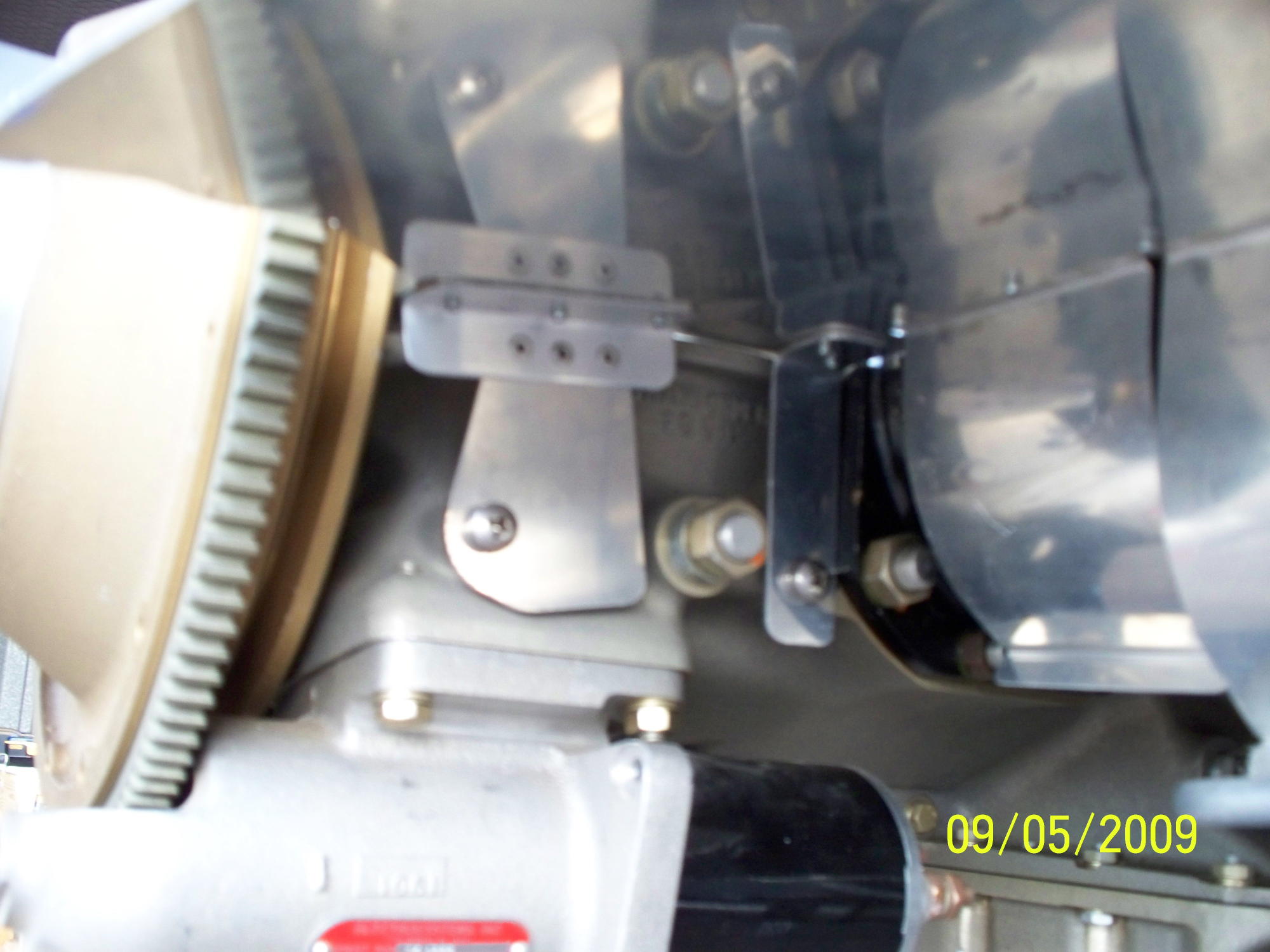

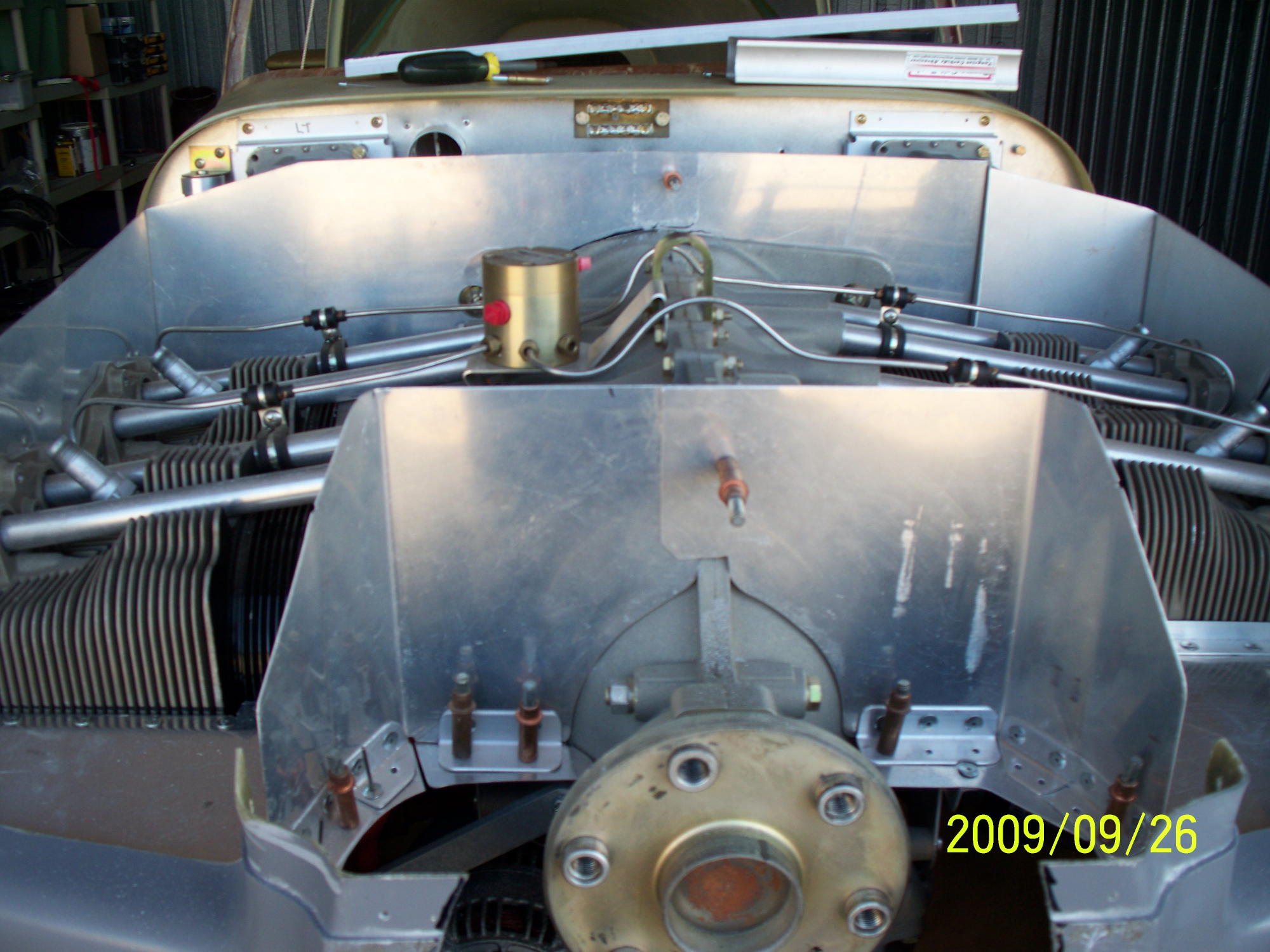

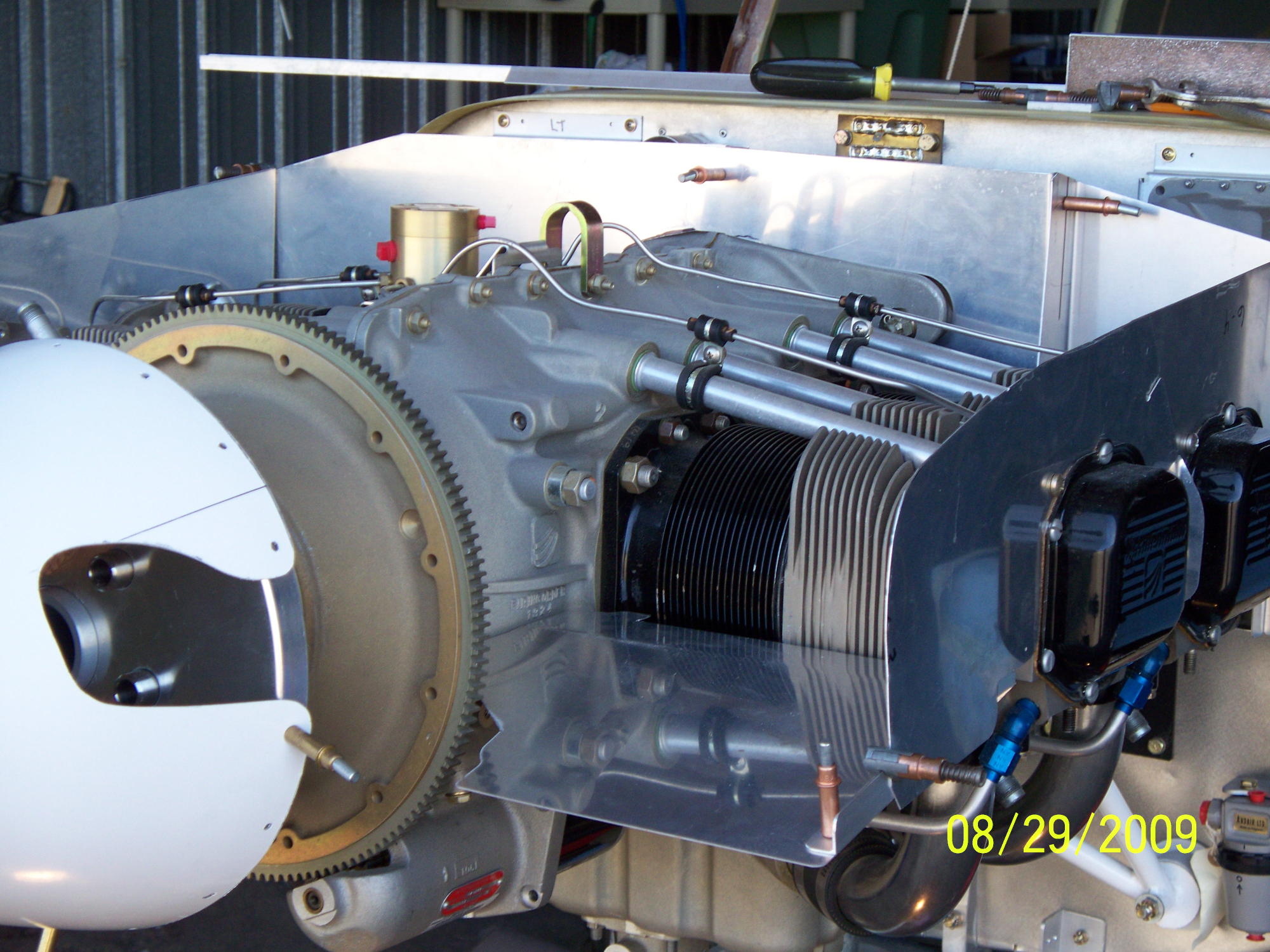

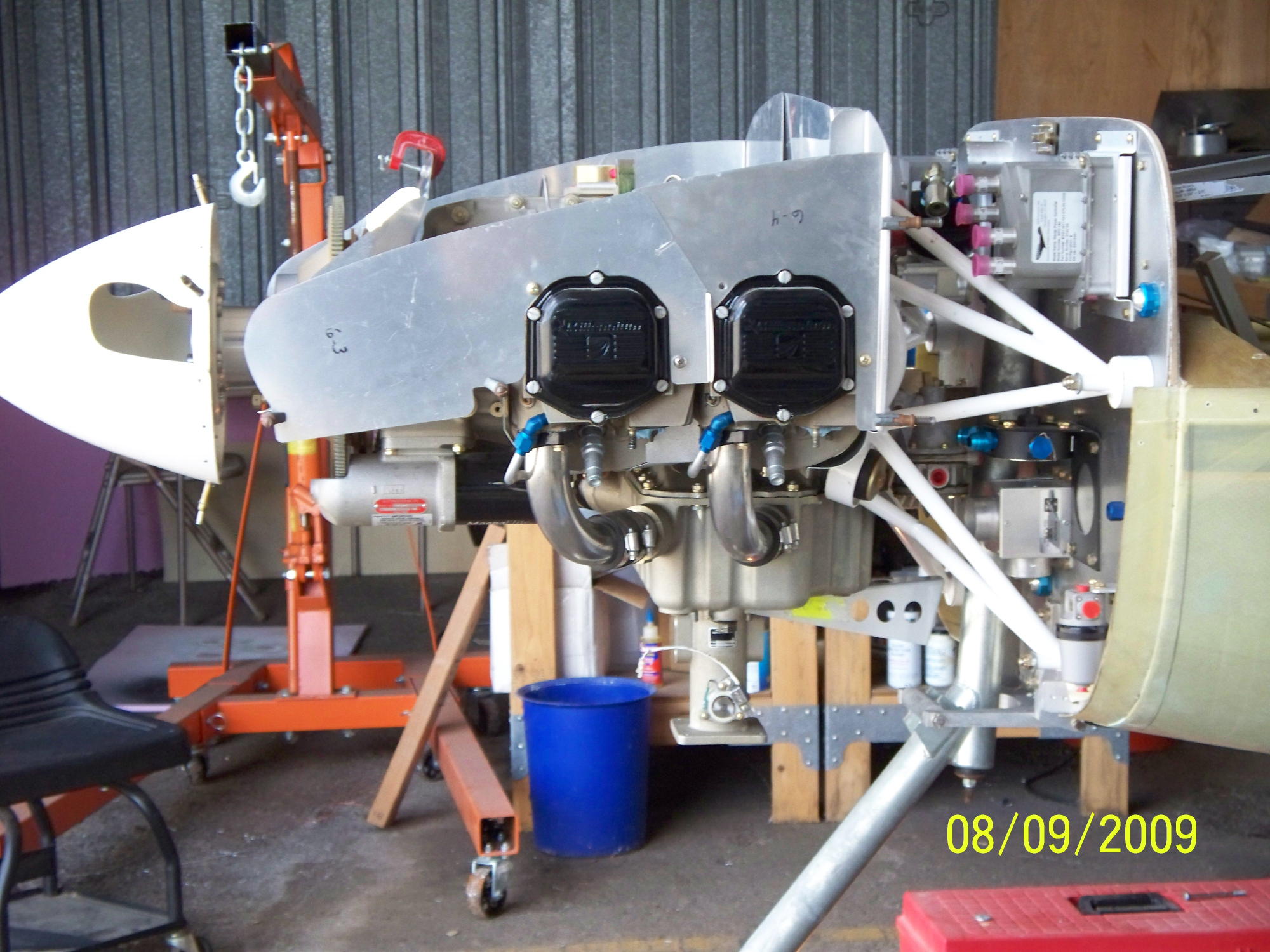

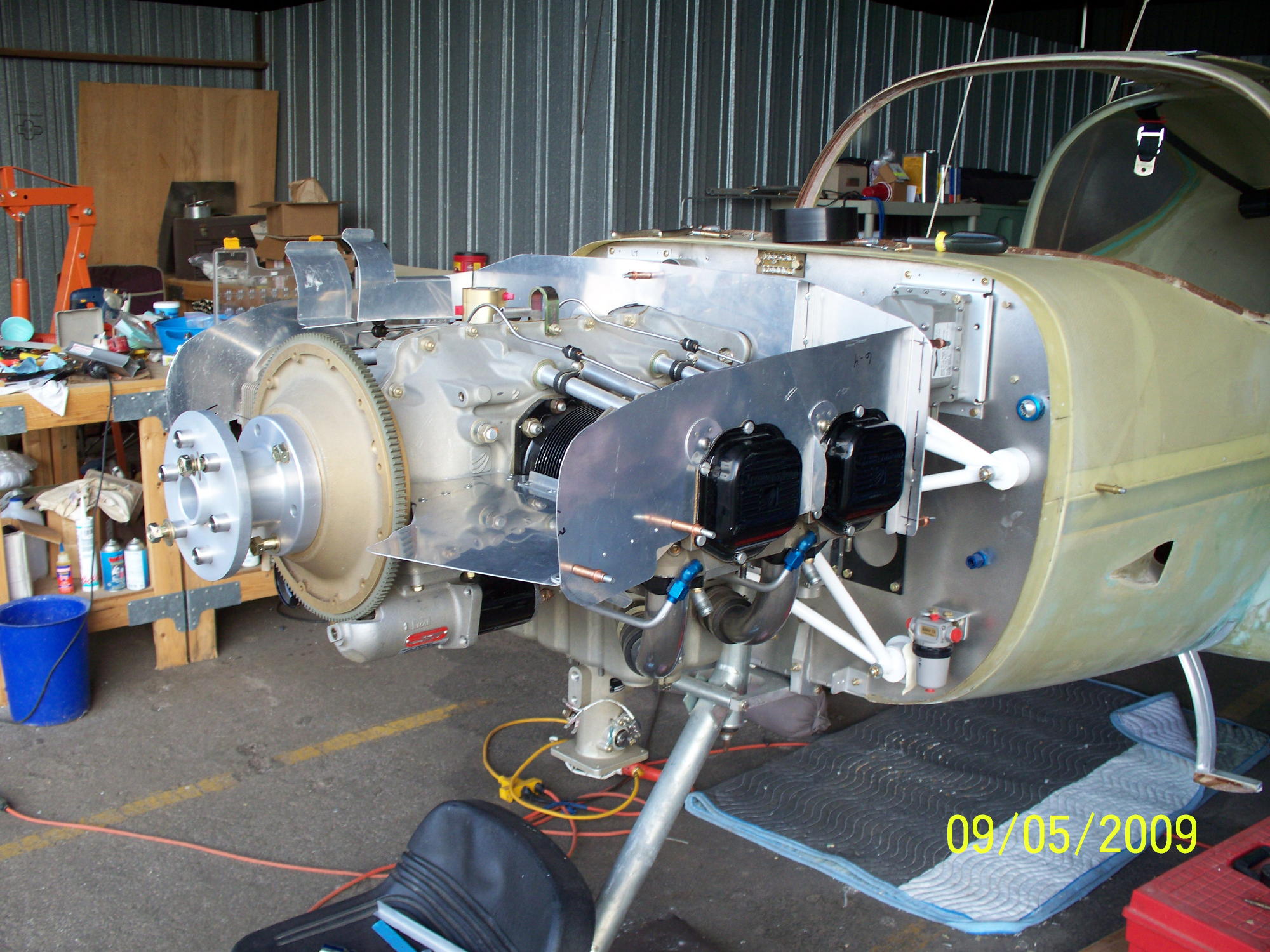

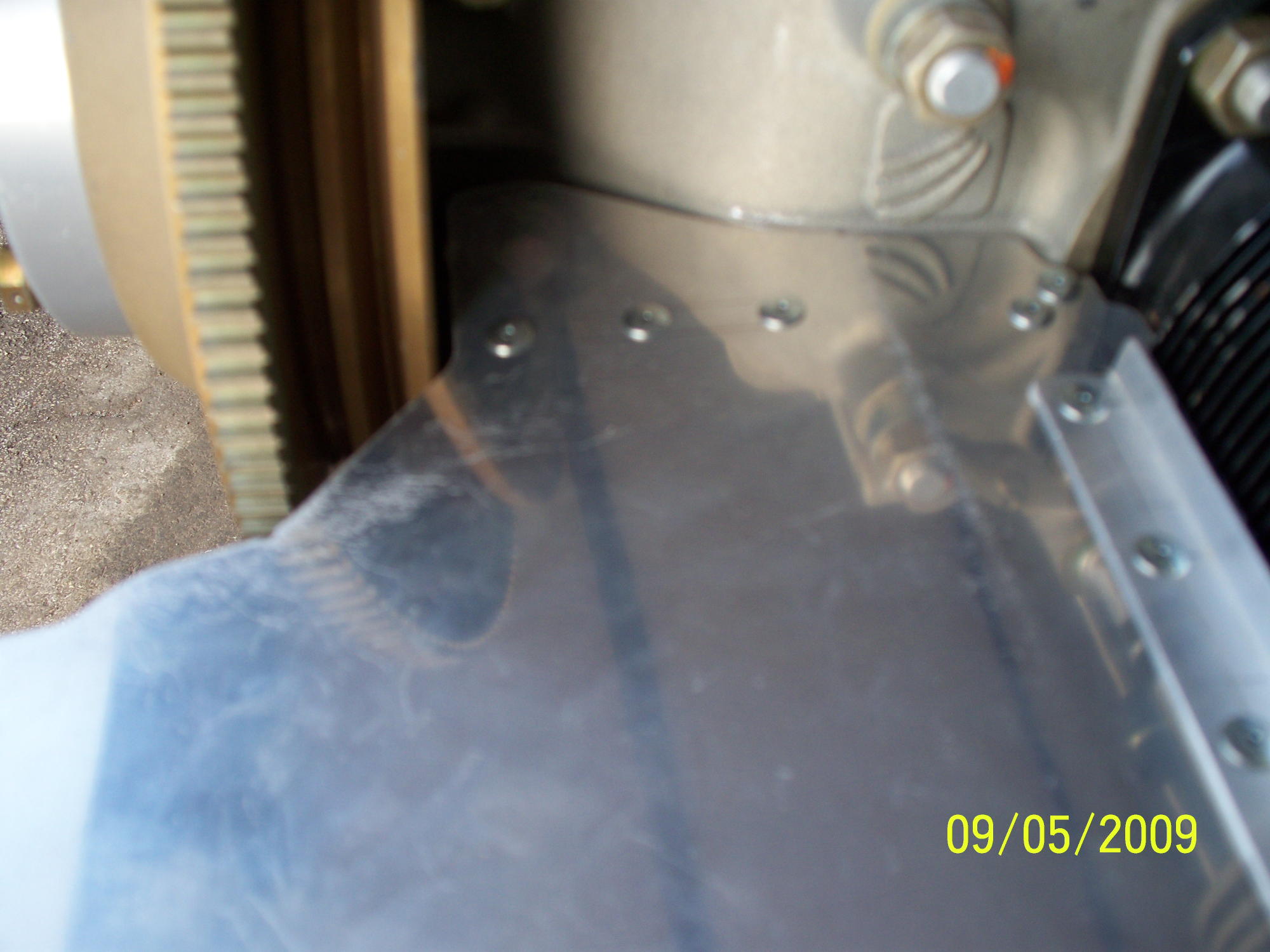

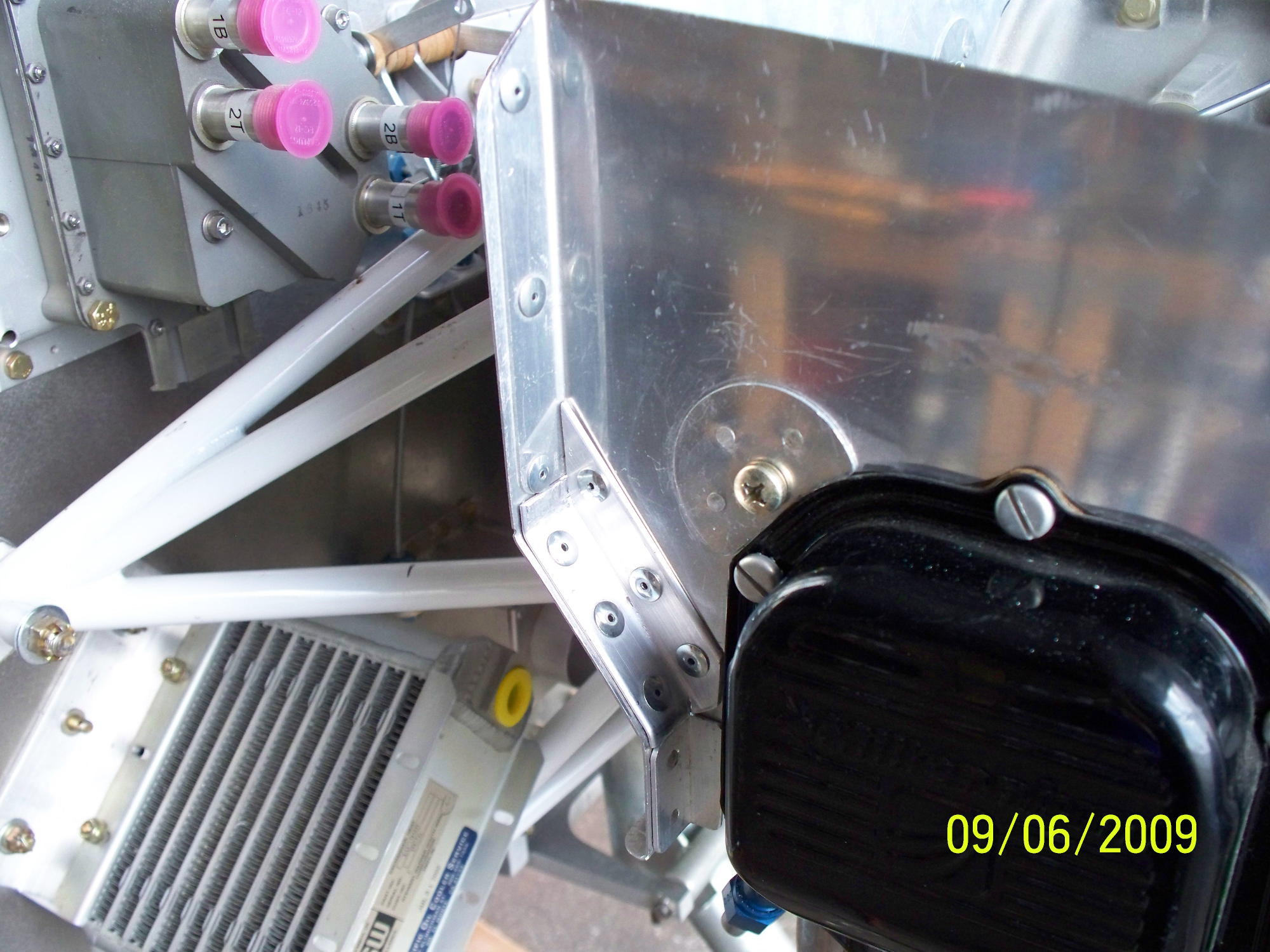

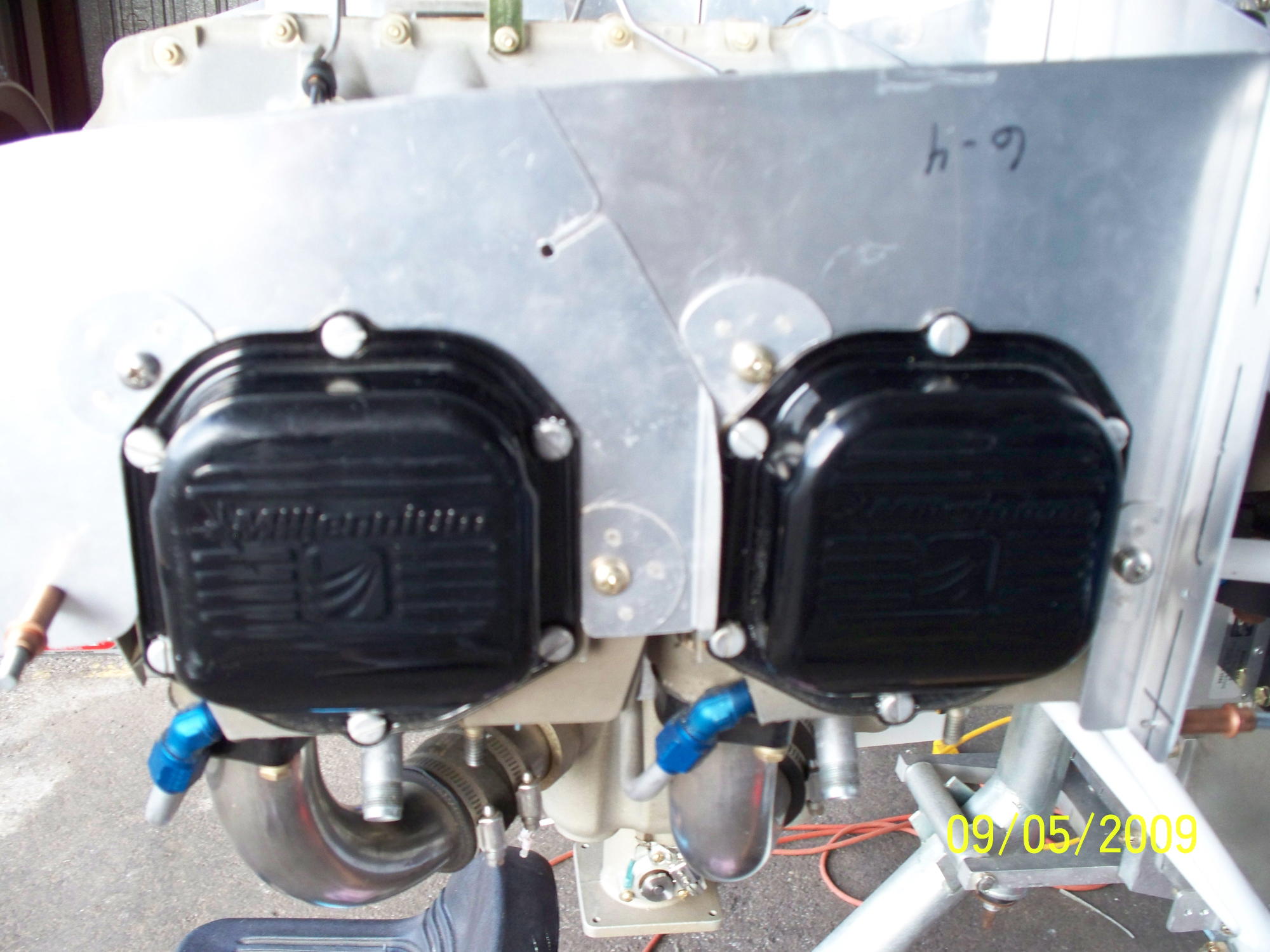

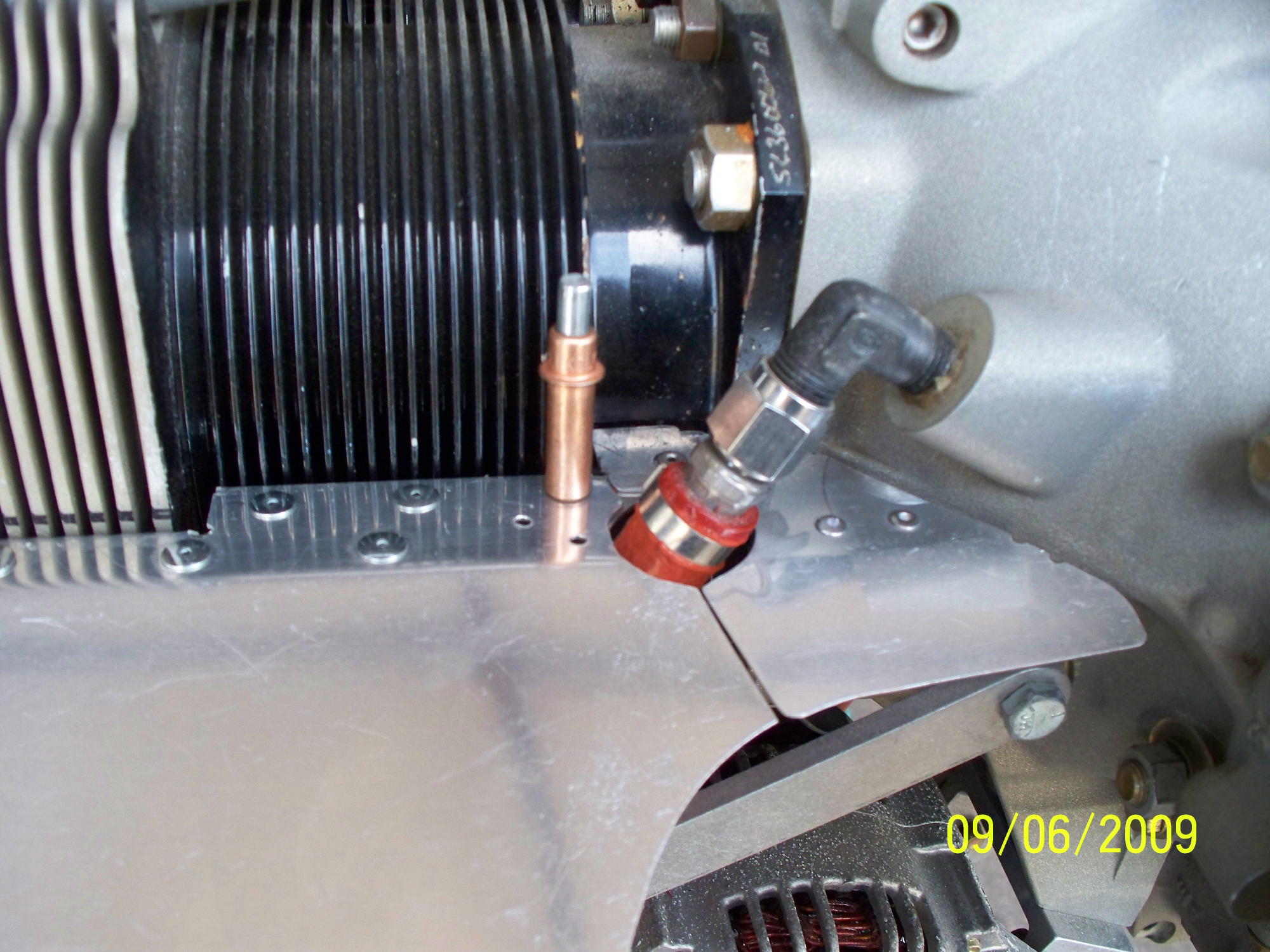

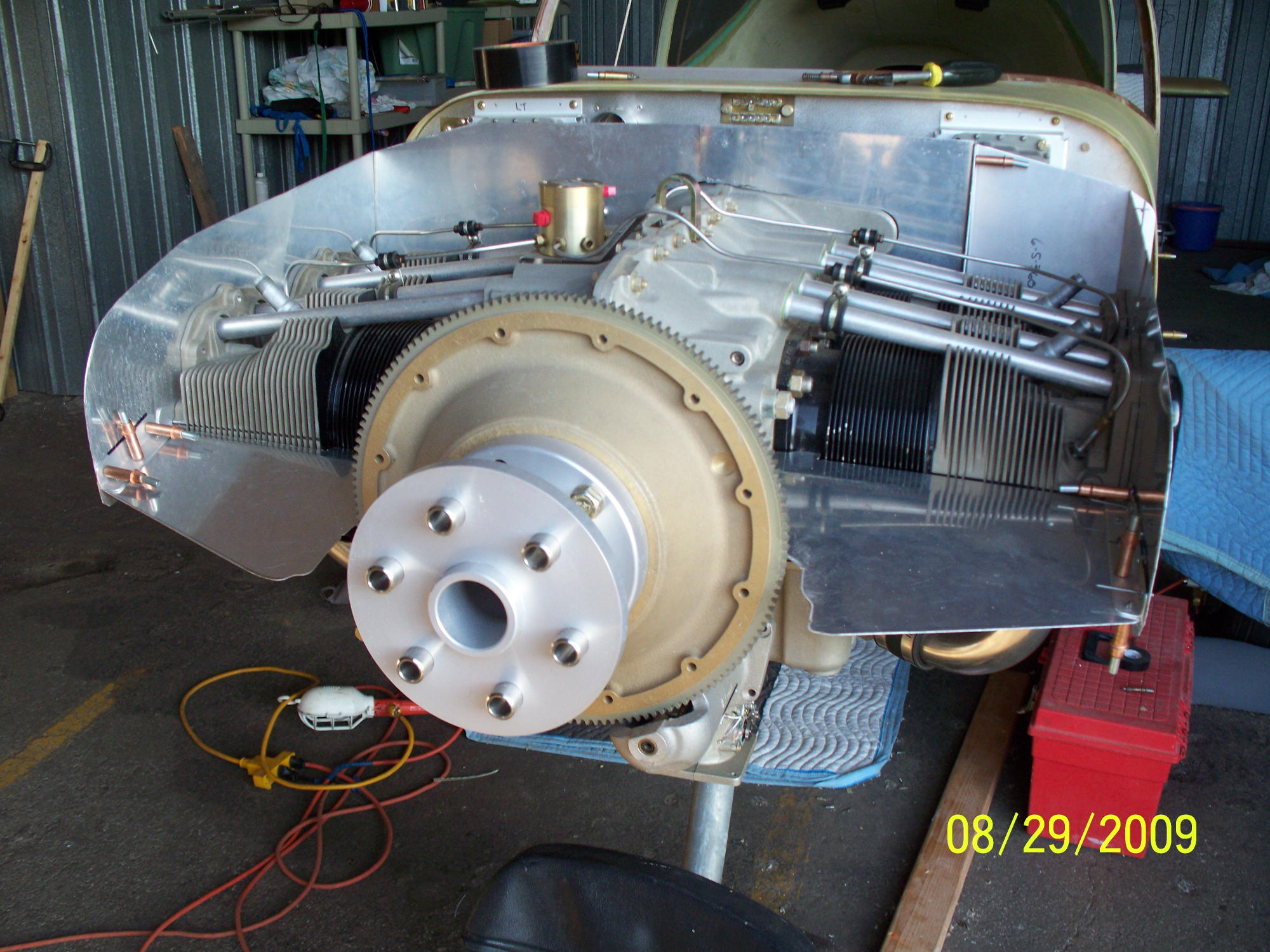

The above shots show the details of the installation of the various parts of the basic baffle components.
The basic installation is pretty much according to the standard instructions with the exception of the trim process.

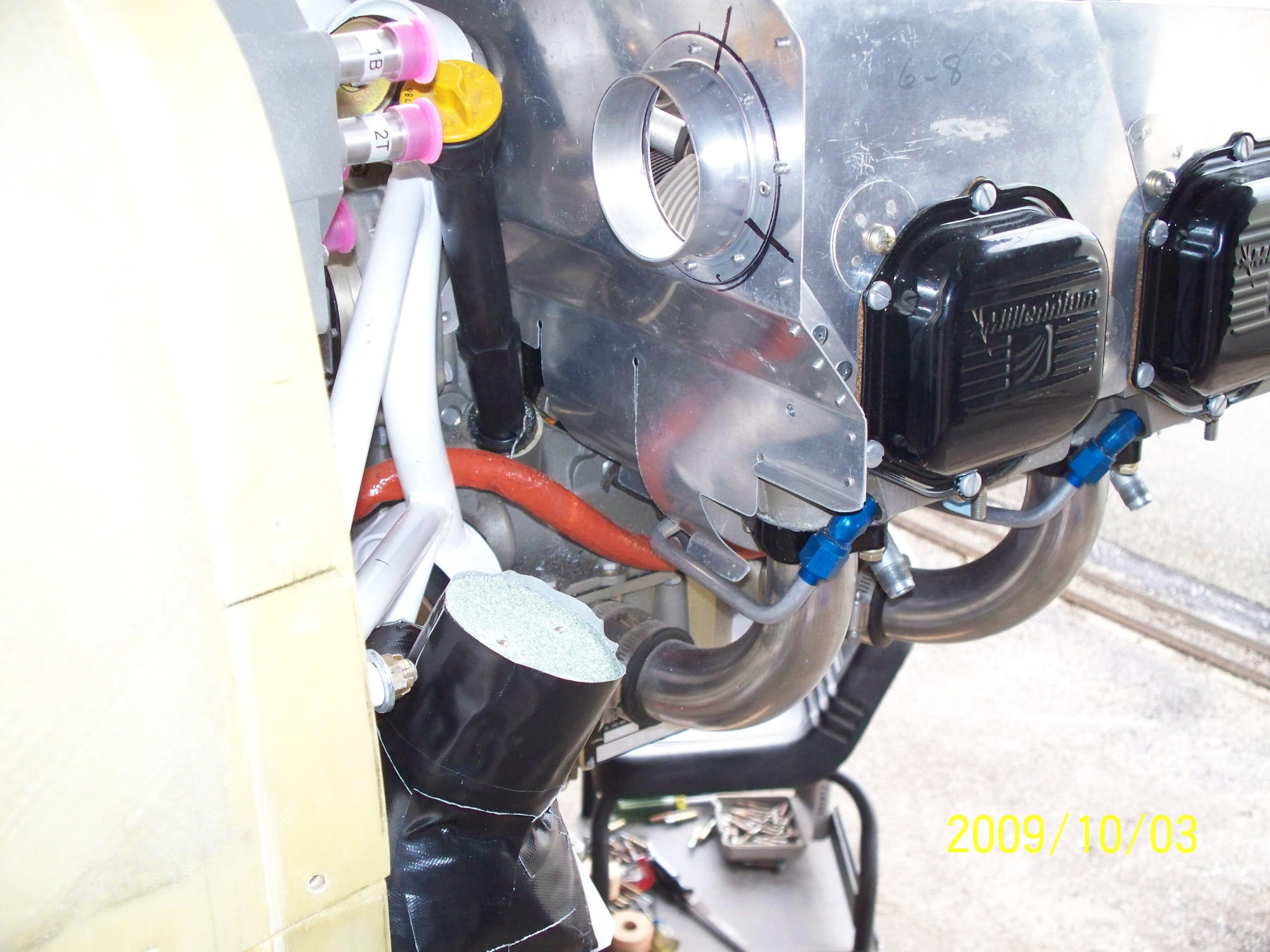

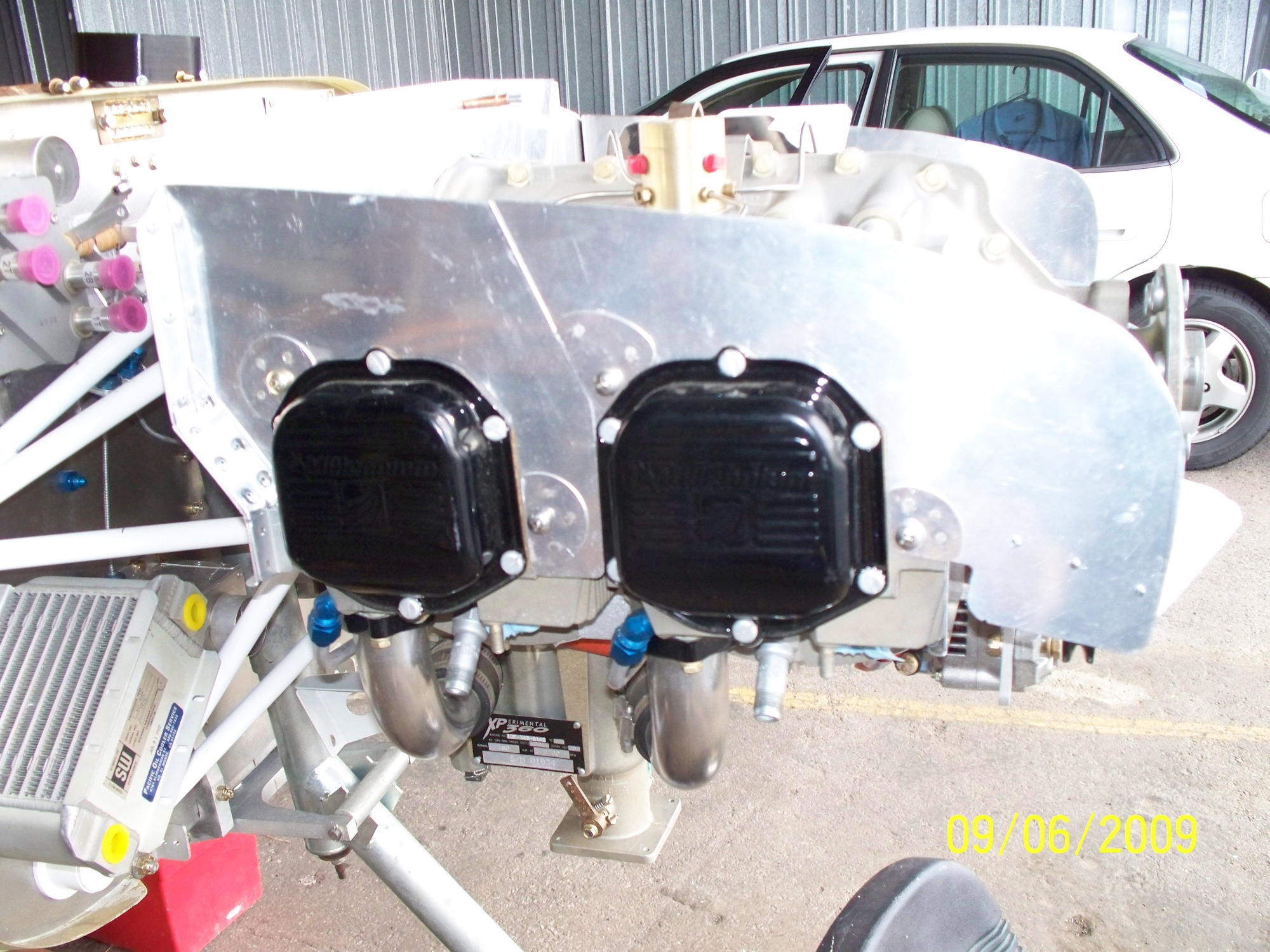

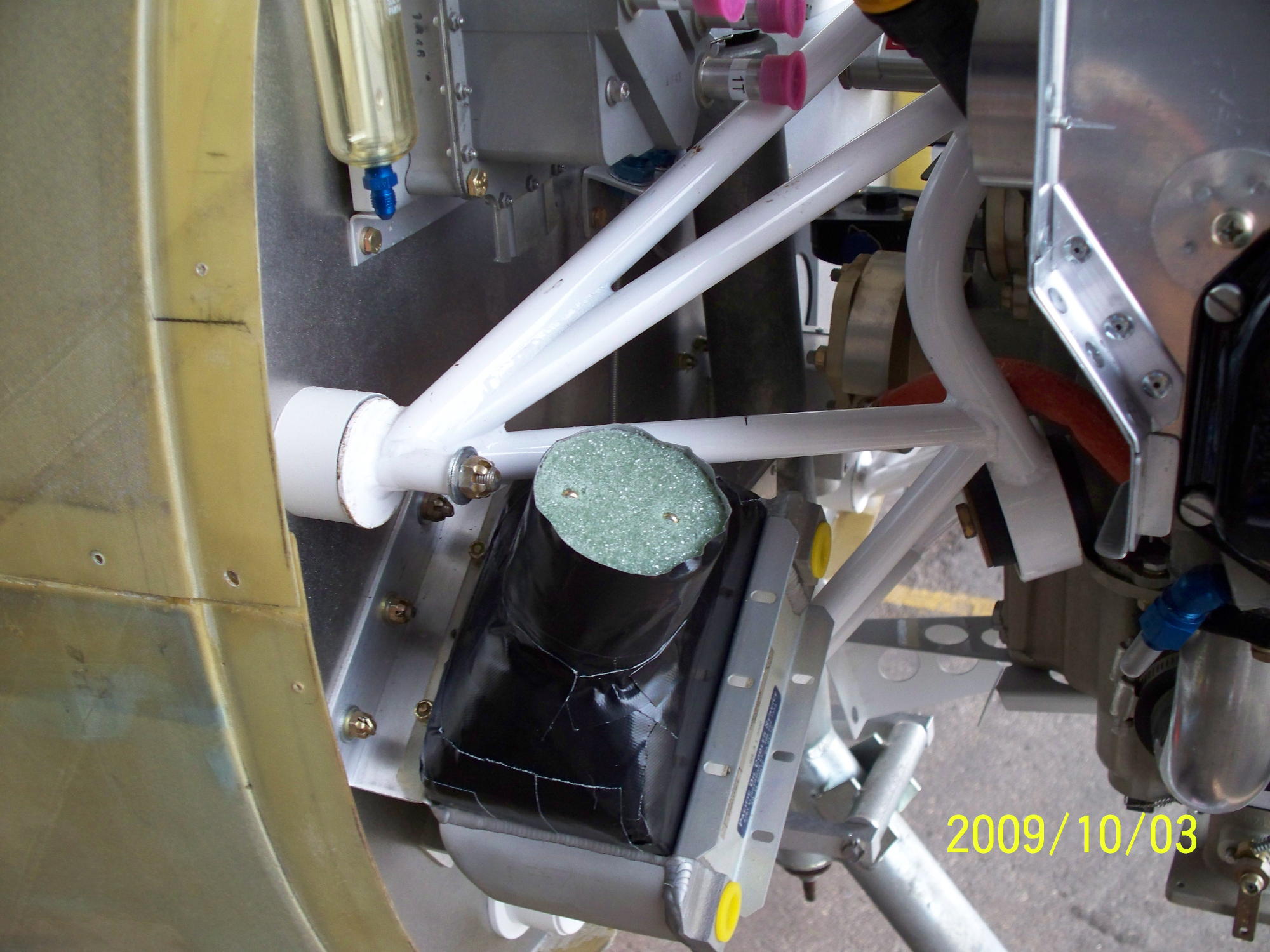

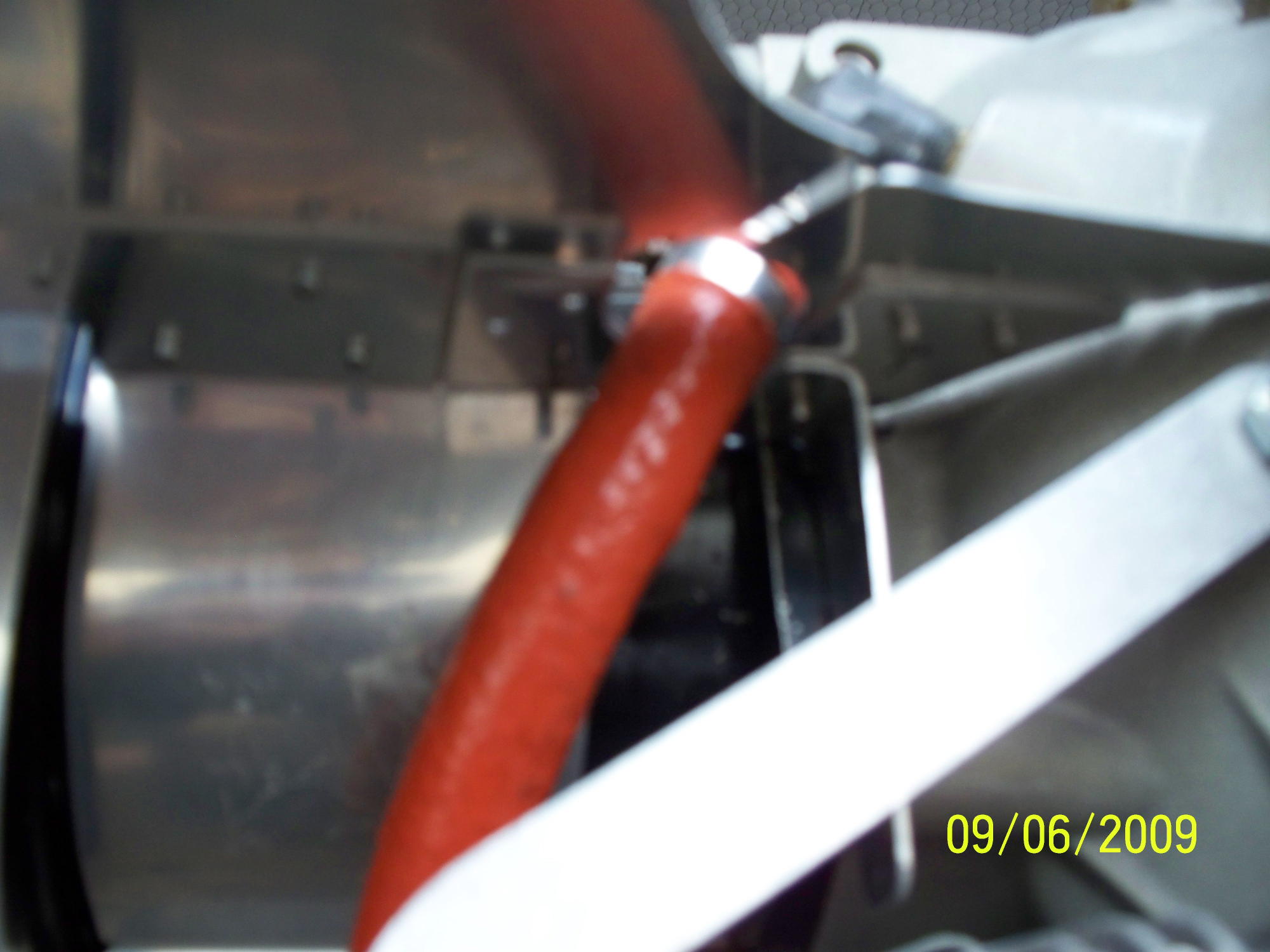

The oil cooler has been mounted on the copilot side of the firewall.  I have placed the opening for the oil cooler on the
side with a short air duct to the cooler.  This will hopefully provide enough air flow for the cooler.

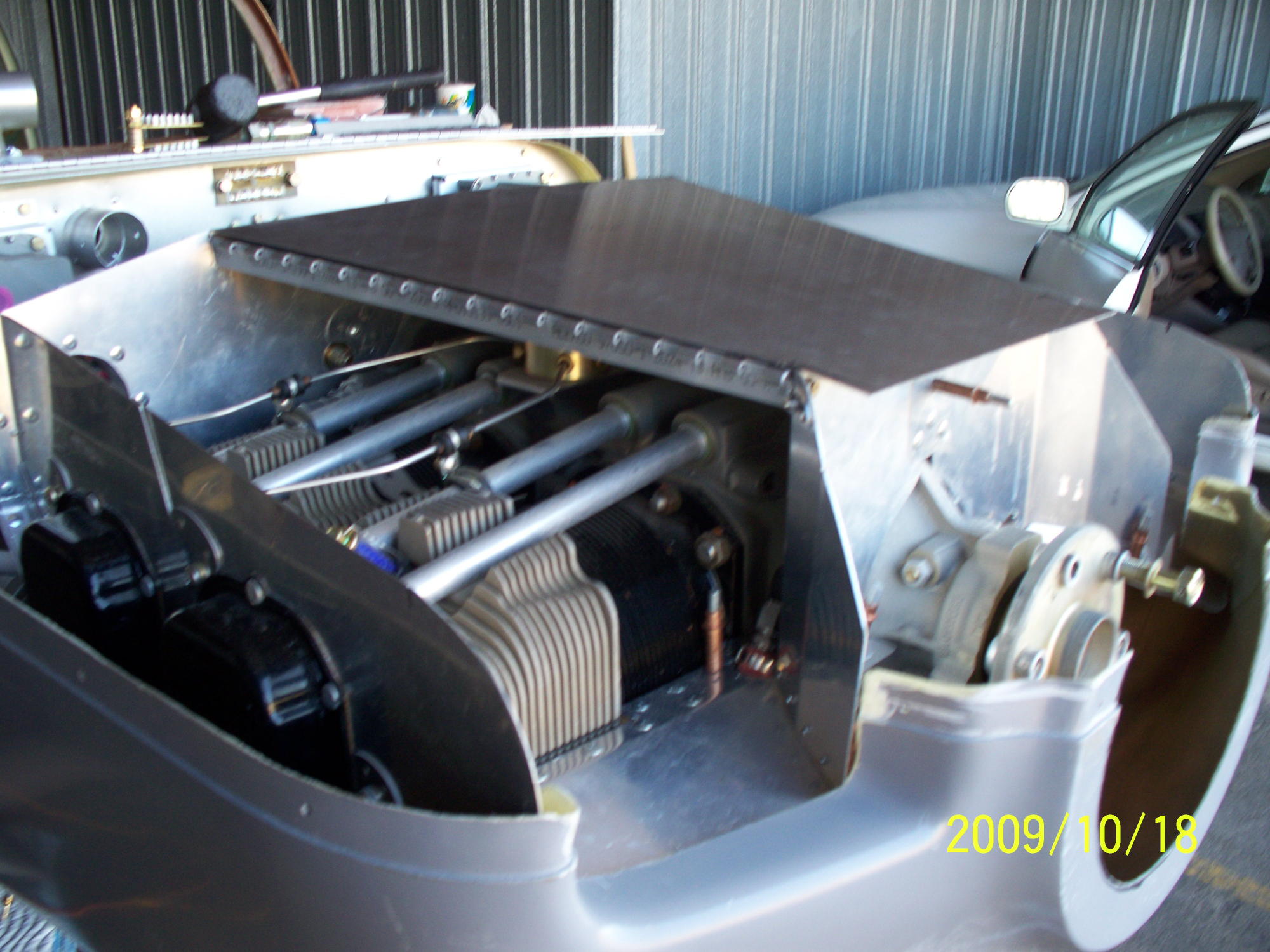

The basic baffle is complete and now its time to decide how to complete the top and create a pressure cowling.
I first considered a standard baffle system but because I live in a very hot climate the standard system didn't appeal

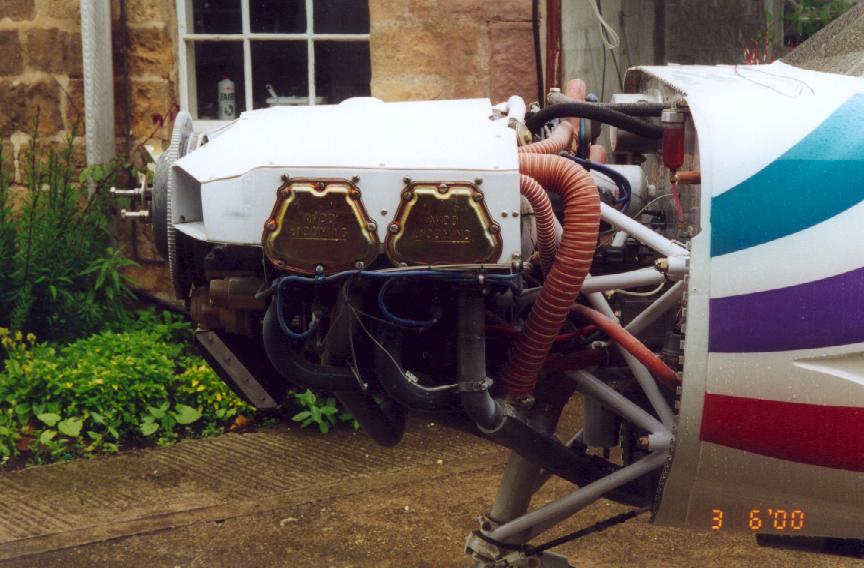

to me.  The Pressure Cowling was always my first choice.  Below shows several of the alternatives I considered.

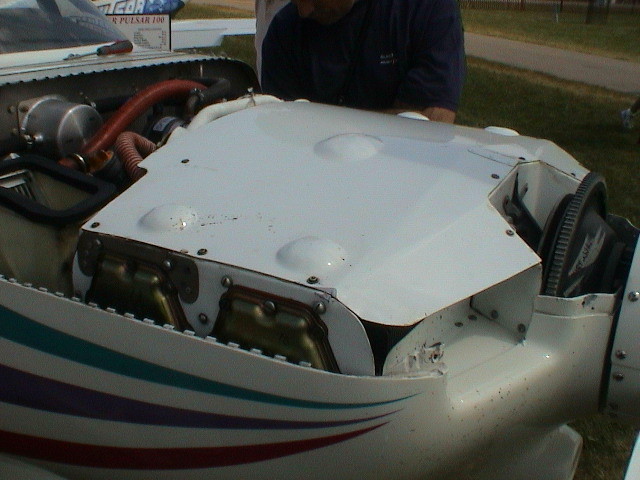

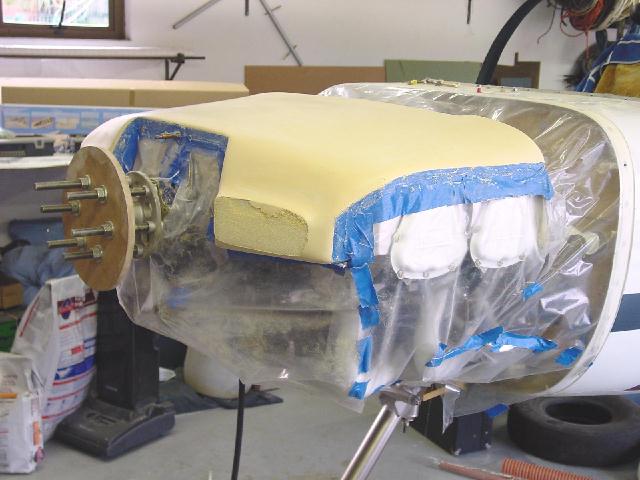

This isn't the complete pressure plenum but shows the mold
ready for fiberglass.		 This was a unique concept that I really gave serious
consideration to but finally decided against it.

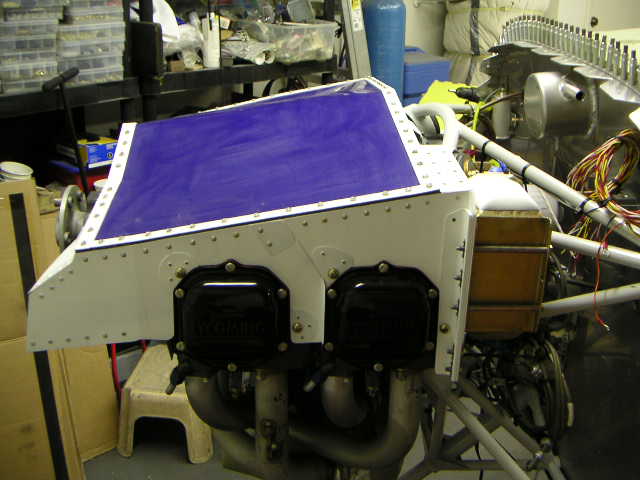

I like the above setup but not if I had to put in the bulges for the spark plugs.  I also didn't like having to take the entir
thing off to service the plugs.  So like most things I have done on the plane, I pulled from all the different methods.

I really hesitated to work with the metal system because I didn't have the tools to bend the alunimum sheets and was
limited to hand tools at the hangar.  I wanted to have access to the plugs and wiring without having to  remove the entire

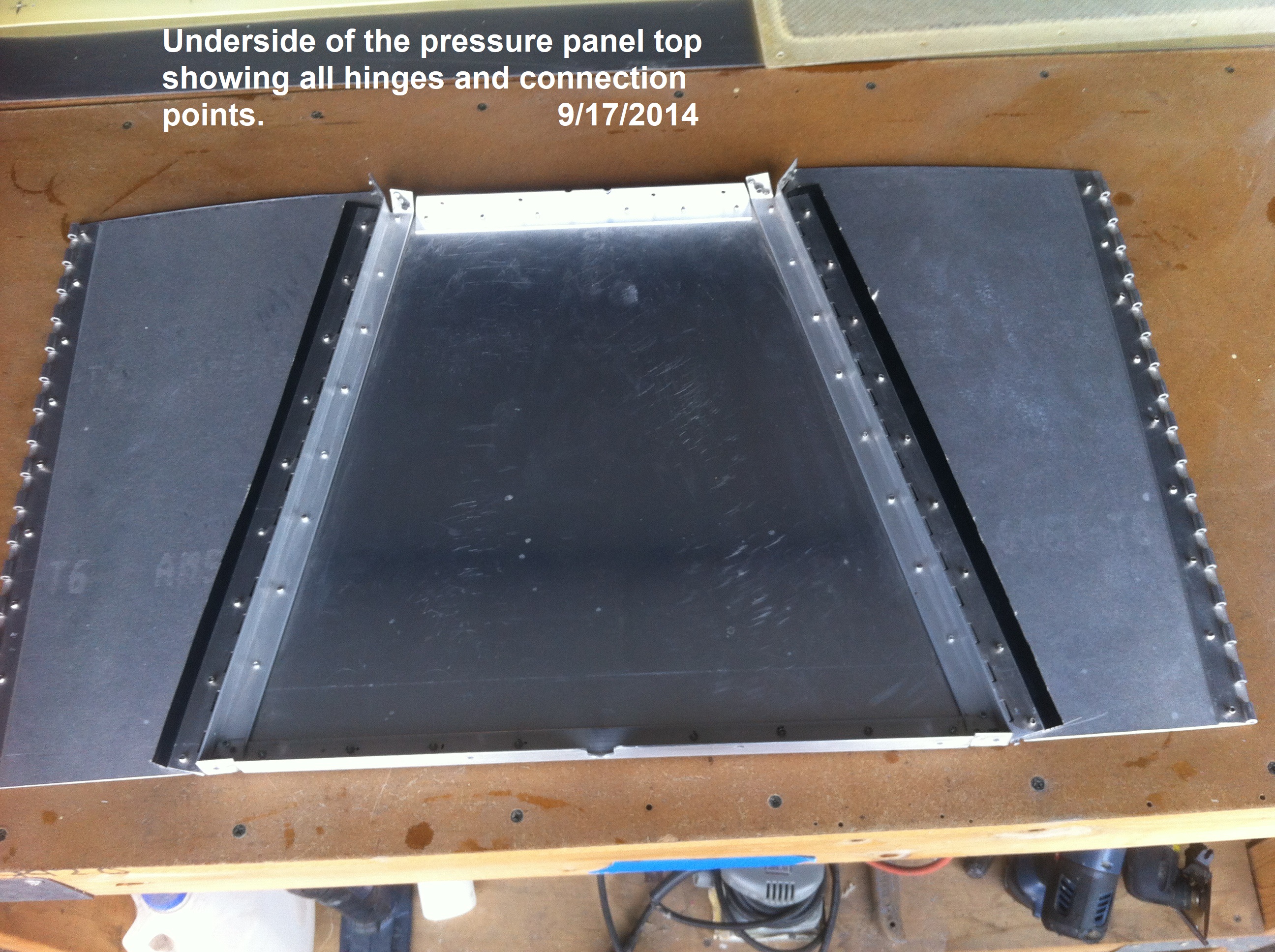

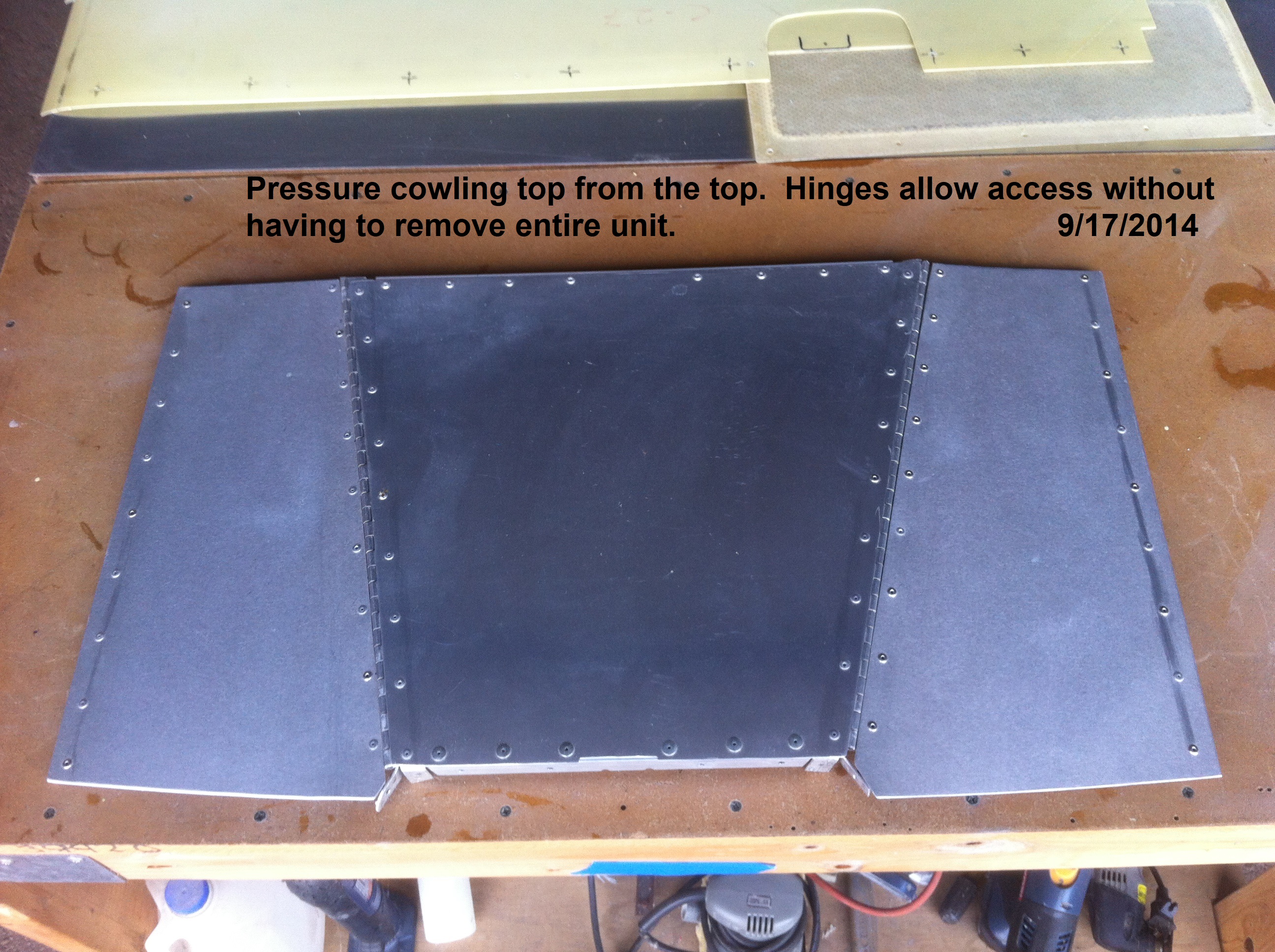

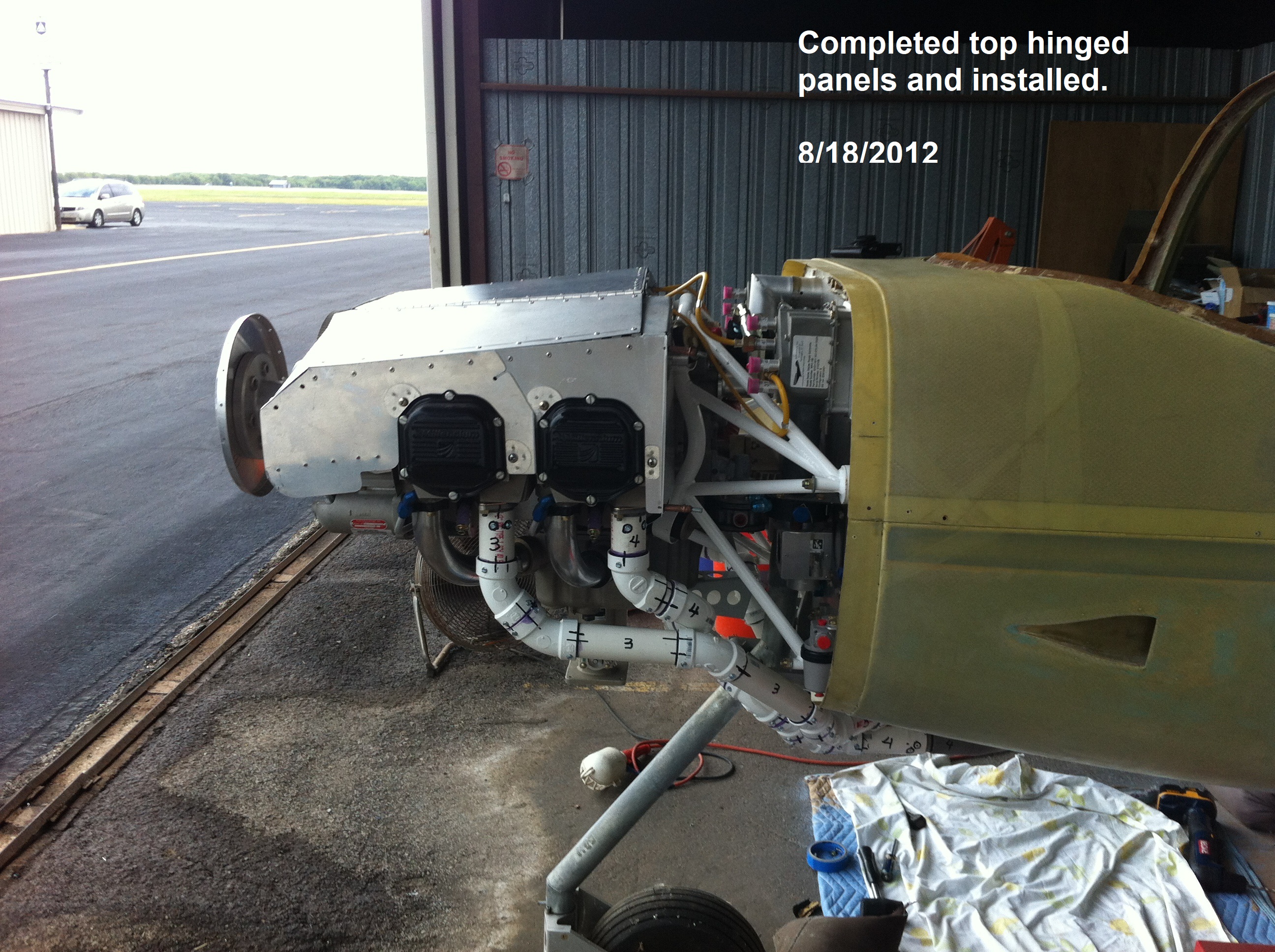

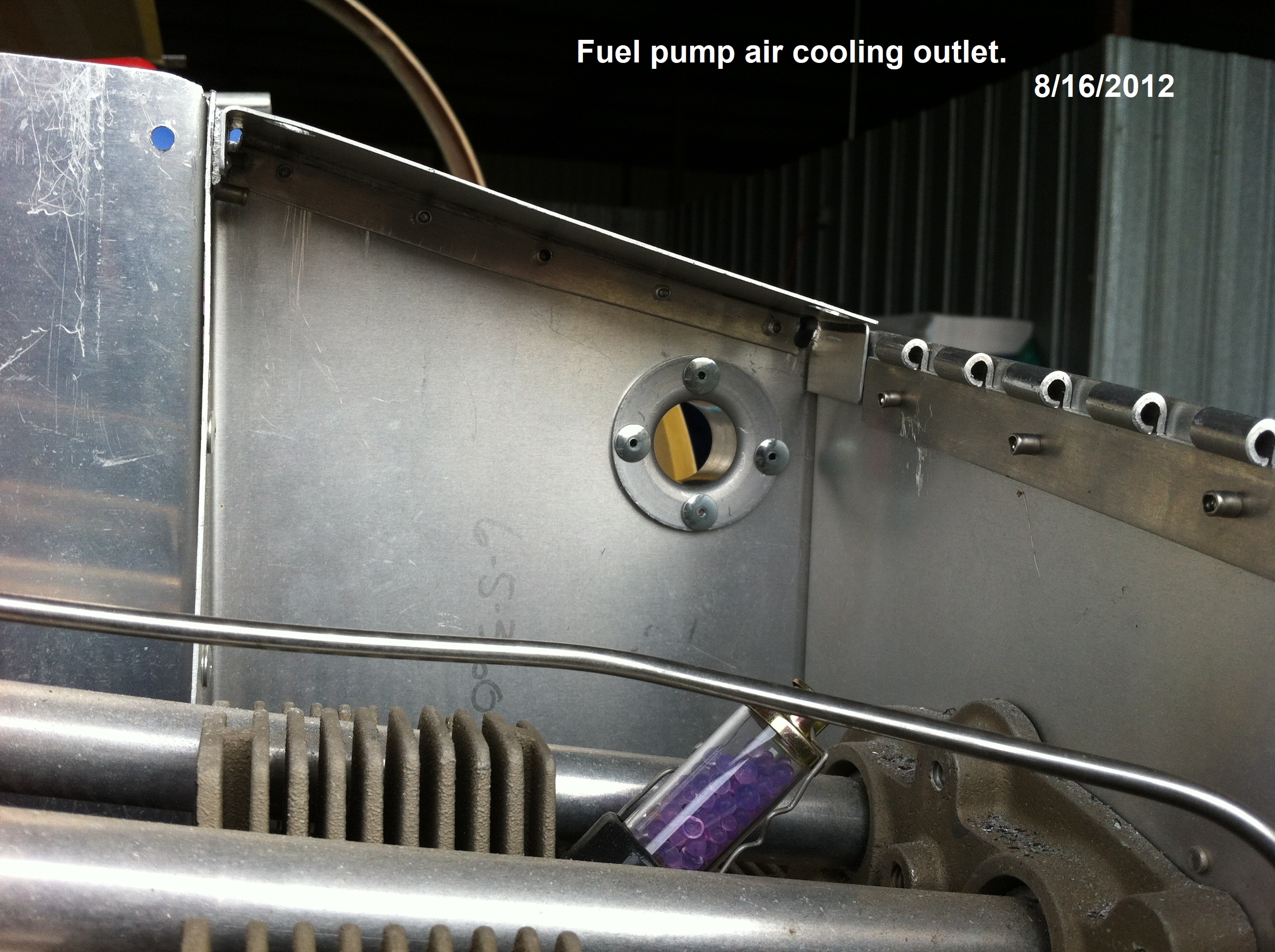

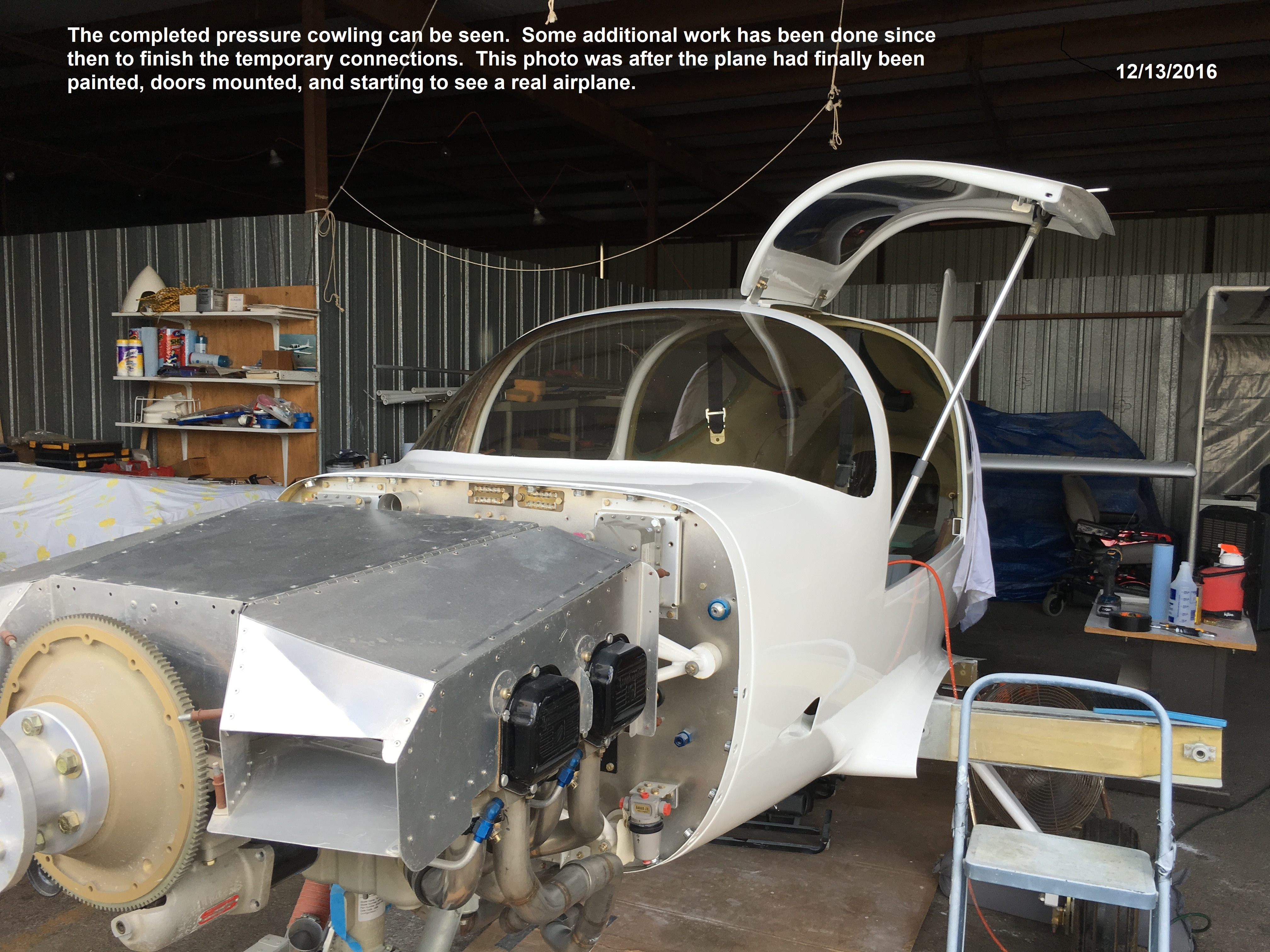

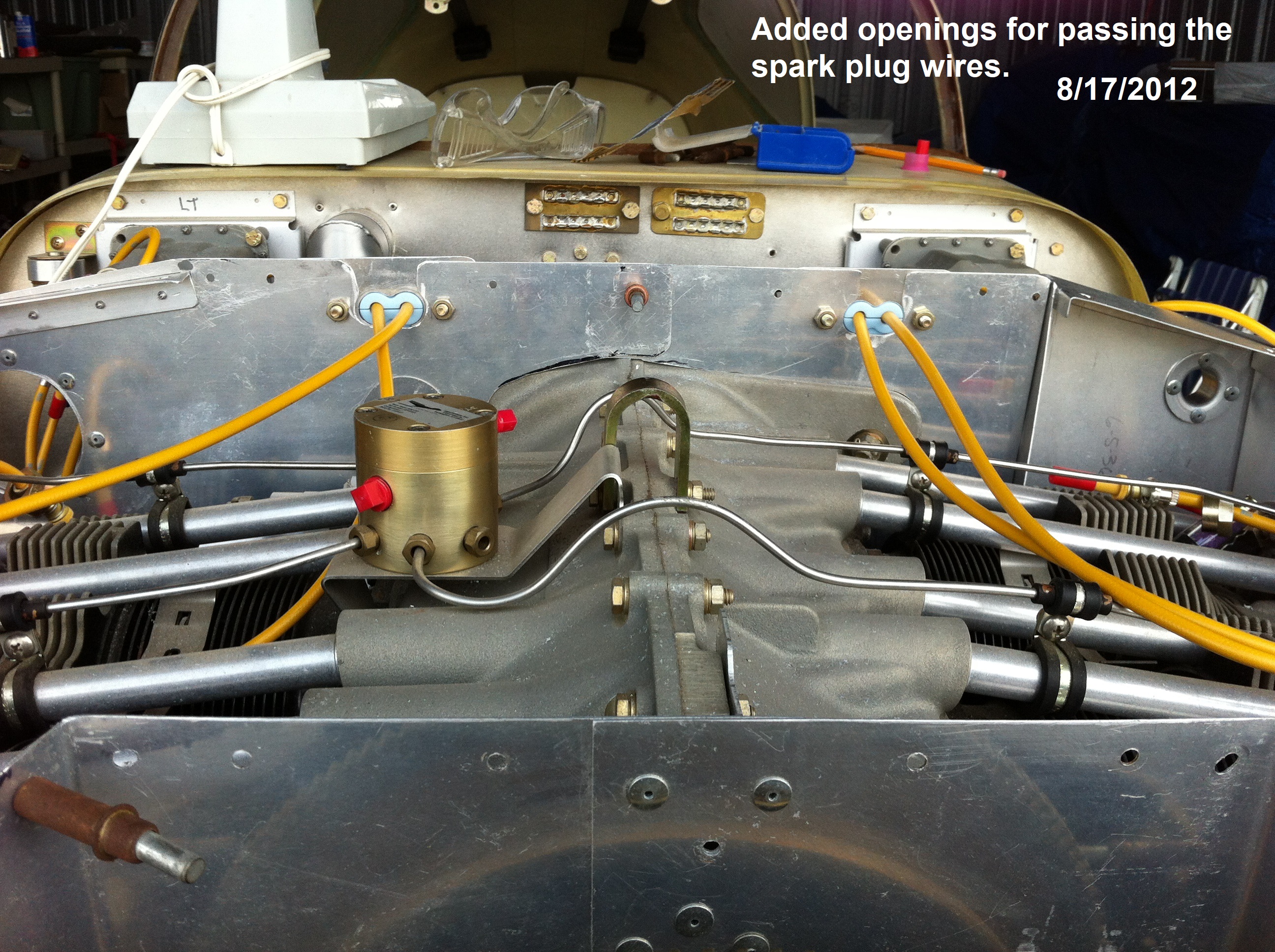

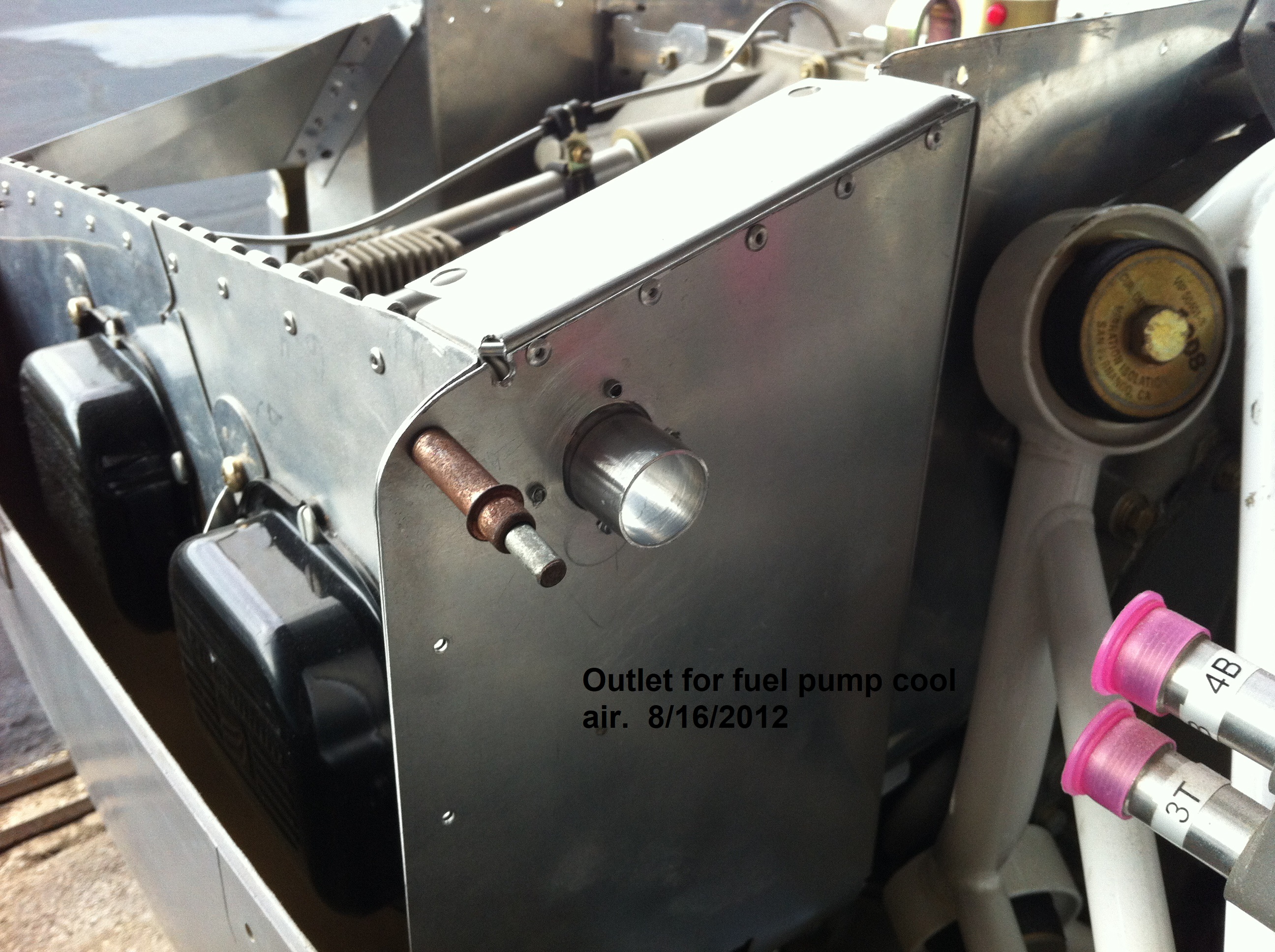

top.  I also like the process of using piano hinges to hold down the parts and provide access.  So the following shows
the process and the results.
