Wheel Fairings
|

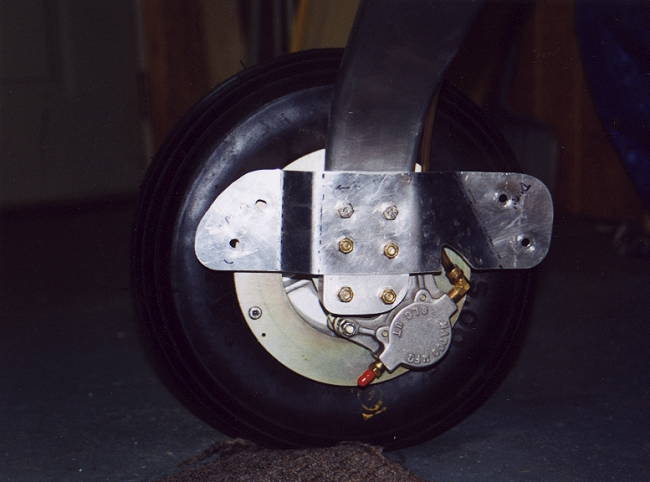

Main Gear inner pant support. |
|

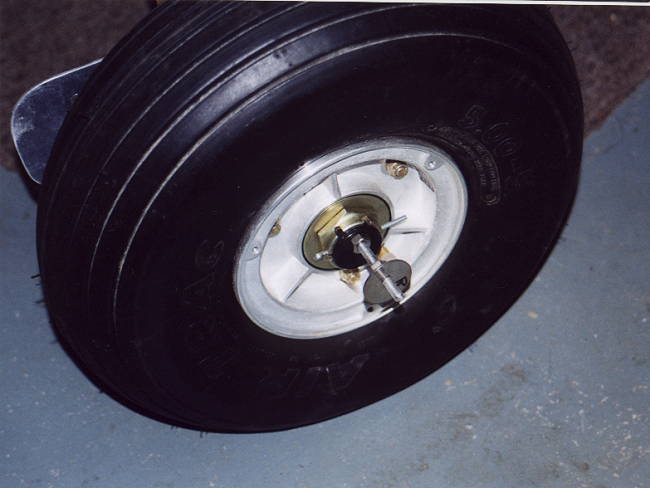

Tapped axle and outer pant support. |
|

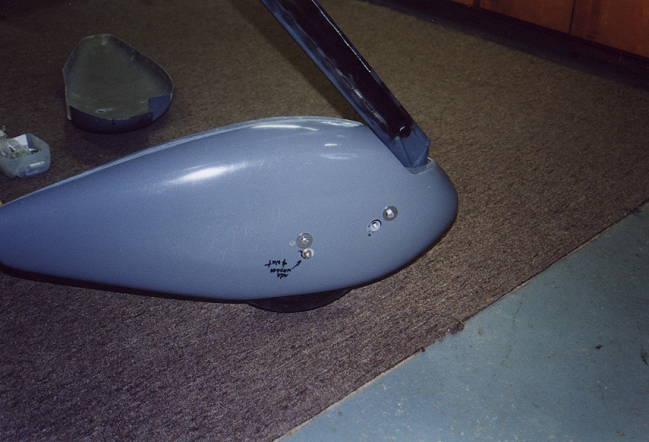

Tire Valve access (may make a little door.) |
|

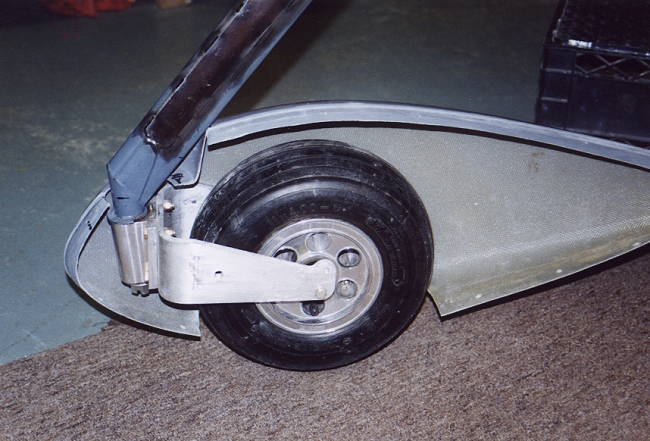

Nose gear pant. (Is it pants?) bolted to bracket. |
|

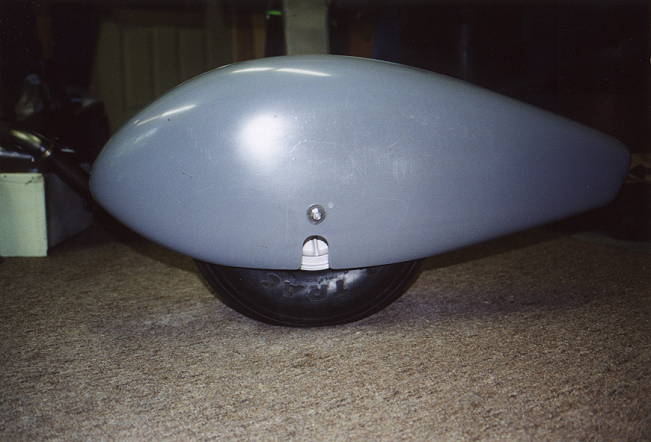

It Fits! Finally! |
